TKIT-HDMI-M

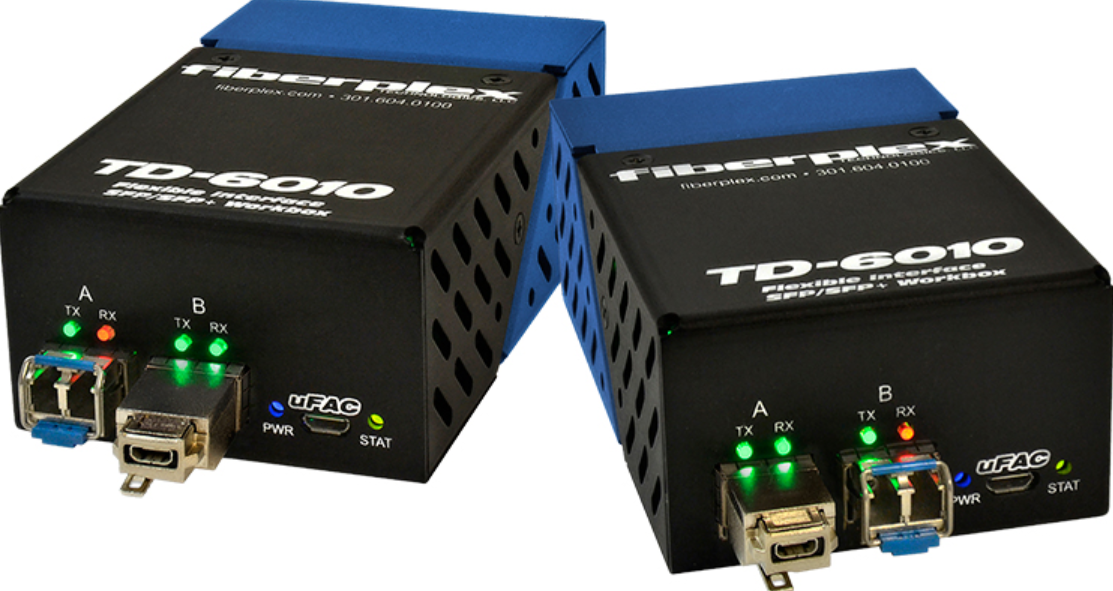

TD-6010 (Pair) HDMI Video to Multimode Optical Conversion, Video Optimized, 850nm, < 500m, LC, Includes AC Power Adapters
Description
Features
- SMPTE 424M, 292M and 259M compliant
- Supported formats 25/625, 720p/1080i (50/59.94/60Hz), 1080p (23.98/24/15/29.97/30/50/59.95/60 Hz)
- HDMI/DVI Input 24 bit (3x8 bits), RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4, BW = 150Mhz, RGB Range (Full/SMPTE), Up to 8 channel audio de-embedding (PCM), HDMI 1.4 Type D connector, HDMI Type D plug with retention and HDCP supported
- Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
- AC Power Adapters included
