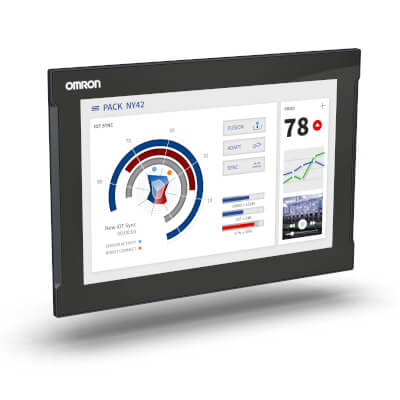

NY532-1300-012443600
Contrôleur de machine pour 16 axes, Panel PC industriel avec Intel® Core™ i5-7440EQ, 8 Go RAM (non ECC), 128 Go CFast MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bits, écran tactile capacitif 15,4p
Description
| IPC type | Panel PC |
| Controller type | Machine Control |
| Max. number of motion axes | 16 |
| Screen diagonal | 15.4 in |
| Processor family | Intel® Core™ i5 |
| Processor specification | 7440EQ (2.9 GHz) |
| Cooling method | Active cooling (fan) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 128 GB CFast MLC |
| Operating system | Windows 10 IoT Enterprise 2019 LTSC - 64 bit |
| Expansion slot | No Expansion |
| Modular port | No Port |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-I |
| Display ratio | 16:10 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Material housing | Aluminium, black |
| Degree of protection (IP), front side | IP65 |
| Operating temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 277 mm |
| Width of the front | 401 mm |
| Height of panel cutout | 259 mm |
| Width of panel cutout | 383 mm |
| Built-in depth | 63 mm |
| Product Weight (unpacked) | 6000 g |
