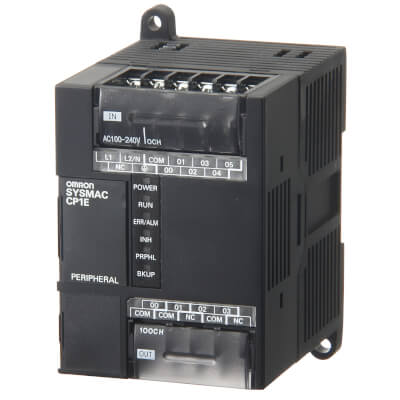

CP1E-E10DR-A
API pour 10 E/S de base (pas d'ext.), 1 x USB. 1,1 ms/K instructions de base, 2K pas programme et 2K mots de données. 6 entrées (4 interruptives (10 kHz) / 2 compteurs 10 kHz). 4 sorties relais 2 A. Tension 240 Vc.a.
Description
| Supply voltage type | AC |
| Number of digital inputs | 6 |
| Input type | PNP/NPN |
| Number of digital outputs | 4 |
| Output type | Relay |
| Program capacity | 2 K steps |
| Data memory capacity | 2 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. encoder input frequency | 10 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analogue option boards | |
| Max. number of analogue I/O channels | 0 |
| Max. number of local I/O points | 10 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 66 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpacked) | 300 g |
