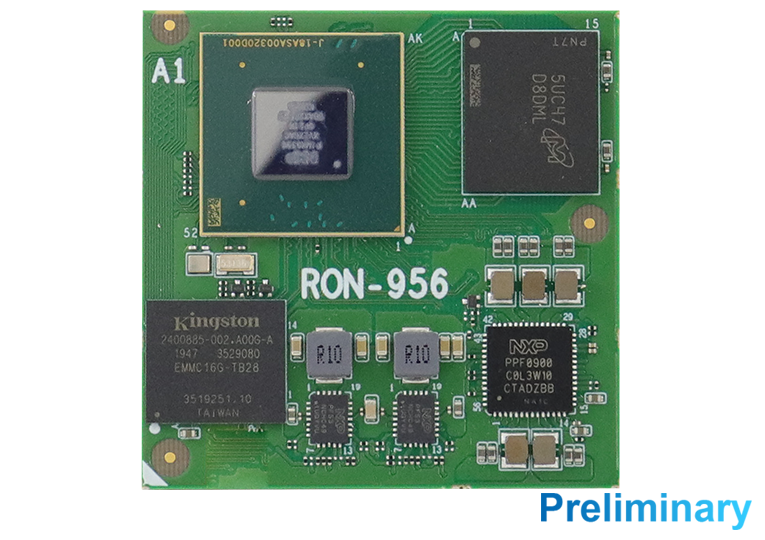

RON-956
AI Edge Board with NXP i.MX 95 Cortex® A55 Processor
Description
- 6x Arm Cortex-A55, 1x Cortex-M33 and 1x Cortex-M7
- Neutron NPU 2.0 TOPS
- Onboard 8GB LPDDR5, 16GB eMMC
- 1x Dual-channel LVDS, 1x single-channel LVDS or 1x 4 lane MIPI-DSI
- 1x 10 GbE, 2x Gigabit LAN, 1x USB 3.0, 1x USB 2.0, 2x PCIe 3.0, 3x CAN FD, 24x GPIO, 2x SDIO
- OSM Size L (45x45mm) Compact Size
- Supports wide-range operating temperature from -40°C to 85°C
- Validated with Yocto5
