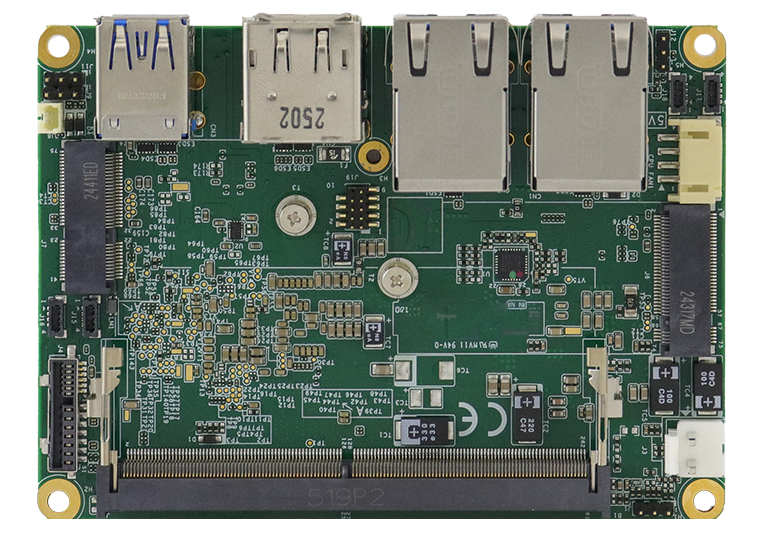

PI800
PICO-ITX Motherboard with Intel® Atom® x7000RE Series Processors (Amston Lake)
Description
- Onboard Intel® Atom® x7000RE Series Processors
- 1x DDR5-4800 SO-DIMM, Max. 16GB
- Supports HDMI (2.0b) and DisplayPort (1.2a)
- 2x RTL-8125BI PCIe 2.5G LAN, 2x COM (RS232/422/485)
- 4x USB 3.2 (Type-A), 2x USB 2.0, 1x SATA III
- 2x M.2 sockets (M2242 [SATA + PCIe] + E2230 [USB + PCIe])
- Watchdog Timer, Digital I/O, TPM (2.0), +12V DC input only
- PCB dimensions: 100mm x 72mm
- Wide-range operating temperature from -40°C to +70°C
