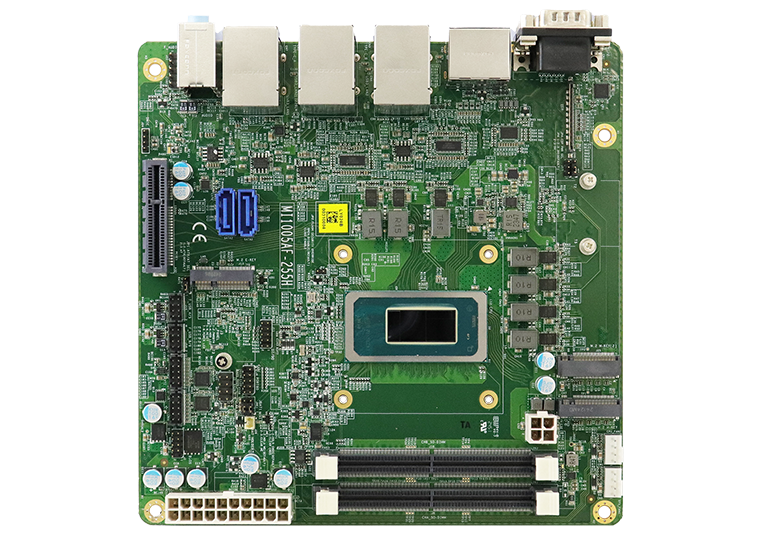

MI1005
AI Edge Board with Intel® Core™ Ultra 200H/200U Series Mobile Processors
Description
- Intel® BGA2049 Core™ Ultra 9/7/5 200 U/H series mobile onboard processors, up to 65W
- 2x DDR5 cSO-DIMM, Max. 96GB, Non-ECC
- Supports eDP(1.4b), 2x Type-C, HDMI (2.1) and DisplayPort(1.4a) (DP++)
- LAN1: Intel® I226LM, supports 2.5G and iAMT, LAN2 / LAN3: Intel® I226V, supports 2.5G only
- 4x USB 3.2 (Type A), 2x USB Type-C, 4x USB 2.0, 4x COM, 2x SATA III
- 1x PCI-E (x4) [Gen4.0]; 3x M.2 (E-Key @2230 and 2x M-Key @2280 & 2242)
- Watchdog timer, Digital I/O, iAMT (19.0) , fTPM (2.0)
