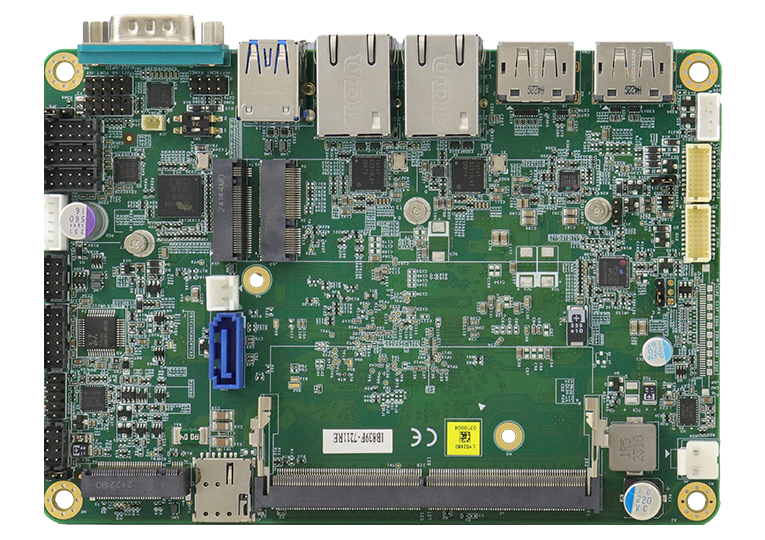

IB839
3.5" Single Board Computer with Intel® Atom® x7000RE & N-Series Processors
Description
- Onboard Intel® Atom® x7000RE series or N-Series processor
- 1x DDR5-4800 SO-DIMM, Max. 16GB
- Supports 2x DisplayPort (DP++) and eDP or LVDS
- 2x PCIe 2.5G LAN, 4x COM ports
- 2x USB 3.2 (Type-A), 4x USB 2.0, 1x SATA III
- 3x M.2 sockets (M-Key, E-Key & B-Key)
- +12V~+24V DC wide-range power input
- Watchdog Timer, Digital I/O, dTPM
- Wide-range operating temperature from -40°C to +85°C
