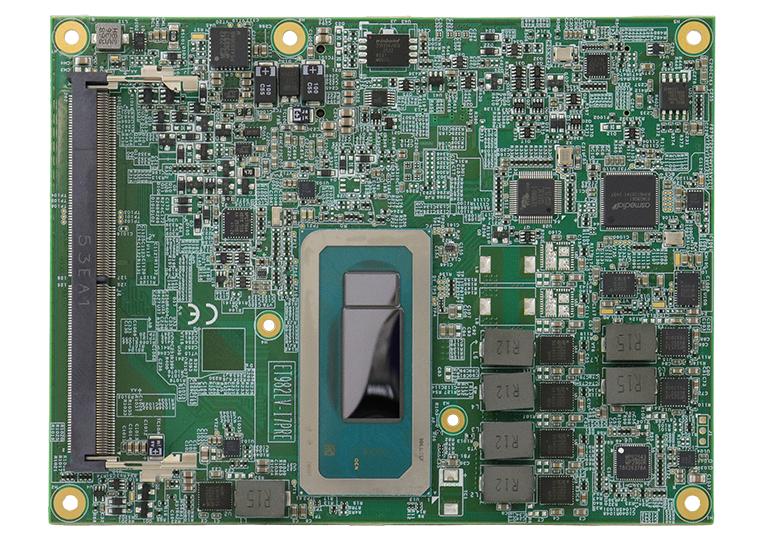

ET982
COM Express Type 6 (R3.1) Module with 13th Gen Intel® Core™ i Mobile Processors
Description
- Onboard 13th Gen Intel® Core™ i7/i5/i3 processors
- 2x DDR5-5200 SO-DIMM sockets, Max. 64GB
- Supports 3x independent displays from HDMI / DP / VGA / LVDS or eDP
- 1x onboard 2.5 GbE LAN
- 4x USB 3.2, 8x USB 2.0, 2x SATA III, 2x COM
- 1x PCIe (x16), 1x PCIe (x4), 4x PCIe (x1) signals to carrier board
- Watchdog Timer, Digital I/O, TPM (2.0)
- Supports wide-range operating temperature from -40°C to 75°C (Only ET982LV-I7PRE)
