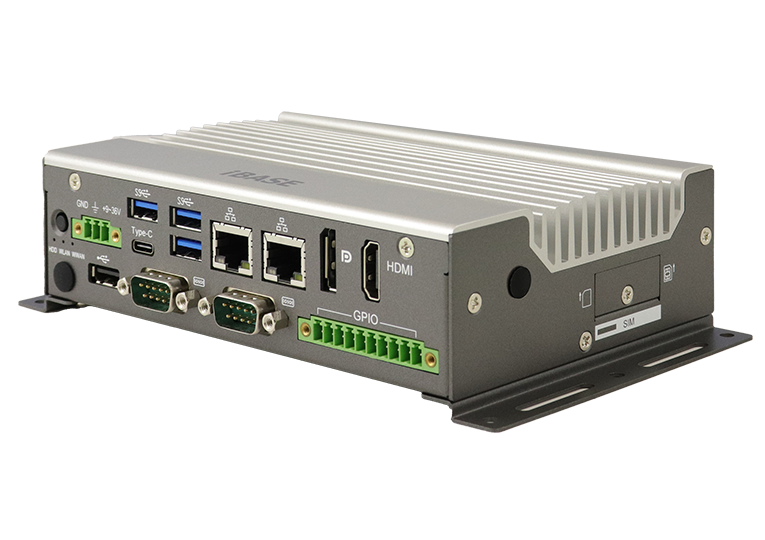

AGS104T
Ultra-Compact IoT Gateway Edge Computing System with Intel® Atom® x7433RE/x7211RE Processors
Description
- Fanless system with iBASE MBE104T proprietary board
- Intel® Atom® x7433RE/x7211RE Processors
- HDMI & DisplayPort, USB Type-C (For DP & USB 3.2), GPIO 4-in/4-out
- 1x M.2 B-key 3052, supports 5G/4G/LTE module
- 1x M.2 E-key 2230, supports WiFi/BT, 1x full-size Mini PCIe for mSATA
- 2x 2.5G LAN port, 3x USB 3.2, 1x USB 2.0, 4x COM (RS232/422/485)
- 9V~36V DC wide-range power input
- Supports over/under/reverse voltage protection
- Wide-range operating temperature from -40°C to 70°C
- Supports DIN-rail mount, wall mount & TPM 2.0
