WB5116

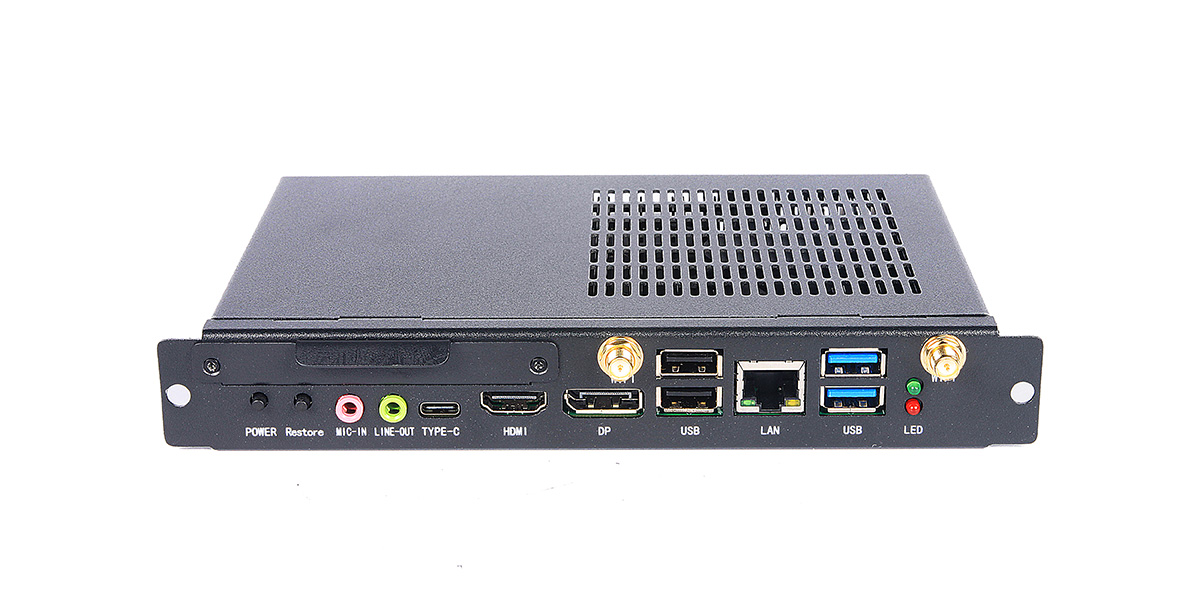

WB5116 supports intel 12th/13th Gen core i3/i5/i7 processor with dual DDR4 3200MHz SO-DIMM memory, HDMI2.0 output from 80pin and front panel, storage support M.2 2280 M-key SATA & PCIe SSD. It is widely used in education, interactive conference whiteboards, digital signage, and other scenes.
Description
CPU
Intel® 12 Gen Core i3/i5/i7
Processor, TDP<= 15W
Processor, TDP<= 15W
BIOS
AMI
Chipset
-
AiCU
-
Memory
Channel: Dual Channel
Type: DDR4 SO-DIMM x 1
Data rate: 3200
Max Memory: 64G
Type: DDR4 SO-DIMM x 1
Data rate: 3200
Max Memory: 64G
Graphics
Intel® Iris Xe Graphics
Expansion
M.2 2280 key M x1 (for PCIe/SATA SSD)
M.2 2230 key E (for wifi)
M.2 2230 key E (for wifi)
Audio
Type: Line-out x 1
Channel: Mic-in x 1
Channel: Mic-in x 1
LAN
intel GIGA LAN x 1
100/1000/1000 Mbps
100/1000/1000 Mbps
Storage
2.5" storage device x 1
M.2 SSD x 1
M.2 SSD x 1
Front Panel I/O
Buttons: Power Buttoen x 1 OS Recovery Button x 1
LED: Power LED x 1 HDD LED x 1
HDMI Port: HDMI2.0 x 1
USB 2.0 Port x 2
USB 3.1 Port x 2
RJ45 LAN Jack x 1
DisplayPort x 1
Audio Set: Line-Out x 1 Mic-In x 1
Antenna Holes x 2
Others: USB Type C x 1
LED: Power LED x 1 HDD LED x 1
HDMI Port: HDMI2.0 x 1
USB 2.0 Port x 2
USB 3.1 Port x 2
RJ45 LAN Jack x 1
DisplayPort x 1
Audio Set: Line-Out x 1 Mic-In x 1
Antenna Holes x 2
Others: USB Type C x 1
Rear Panel I/O
JAE TX25/TX25A:
HDMI2.0 x 1
DP x 1(option)
USB2.0 x 2
USB3.0 x 1
UART x 1
Audio out x 1
12~19V DC in
HDMI2.0 x 1
DP x 1(option)
USB2.0 x 2
USB3.0 x 1
UART x 1
Audio out x 1
12~19V DC in
CPU Thermal Module
Active Fan cooler
Dimensions (W x H x D)
200 x 30 x 119 mm
7.87 x 1.18 x 4.69 inch
7.87 x 1.18 x 4.69 inch
Volume
0.714L
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
-
Input Voltage
-
MTBF
-
Operating Temperature
0 ~45ºC (32~ 113ºF)
Storage Temperature
-30 ~ 70°C (-22 ~ 158°F)
Relative Humidity
90% RH (non-Condensing)
Support
Windows IoT Enterprise
ChromeOS Flex
Linux
ChromeOS Flex
Linux
