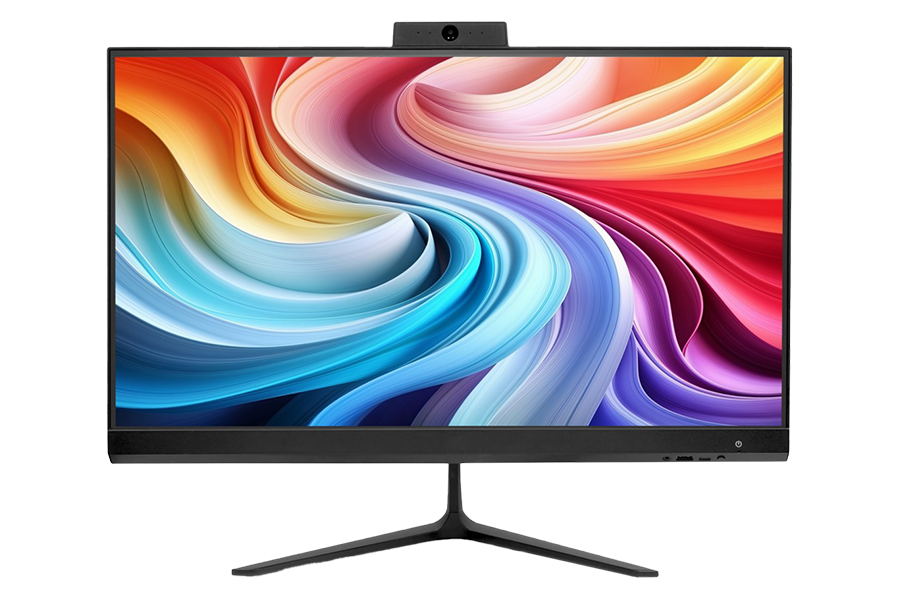

WA242
Save Space, Reduce Hassle
Description
Product Name
WA242
Display Size
23.8”
Max. Resolution
1920x1080 (FHD)
Refresh rate
120Hz
Dimension (W x H x D)
540.4*415.51*163.22mm
Weight
4.0KG
CPU
Intel® 13th Gen Core™ i Processor
Memory
Channels: Dual Channel
Type: DDR4 SO-DIMM x2
Max Memory: Max 64GB
Type: DDR4 SO-DIMM x2
Max Memory: Max 64GB
Graphics
Intel® UHD Graphics
Expansion slot
M.2 2230 Slot x1 (for WLAN)
M.2 2280 Slot x1 (for SSD)
2.5" Storage Bay x1 (for HDD/SSD)
M.2 2280 Slot x1 (for SSD)
2.5" Storage Bay x1 (for HDD/SSD)
Audio
Type: RTK ALC897
Channel: Stereo
Channel: Stereo
LAN
Chip: RTL 8111H-CG
Speed: 100 / 1000 Mbps
Speed: 100 / 1000 Mbps
Front I/O
Connectivity: x1, Type-A (USB2.0) x1, Type-C (USB2.0)
Audio Jack: x1 (Combo Audio)
Power Button: x1 (with LED)
Reset Button: x1 (Clear CMOS)
Audio Jack: x1 (Combo Audio)
Power Button: x1 (with LED)
Reset Button: x1 (Clear CMOS)
Rear I/O
DC Input: x1 (19V)
HDMI Port: x1 HDMI 1.4 out (4K@60Hz)
DisplayPort: x1 Displayport 1.4 out (8K@60Hz)
Connectivity: x2 Type-A (USB3.2 Gen2) x2 Type-A (USB2.0)
RJ45 LAN Port: x1 (1G LAN)
Kensington Lock Hole: x1
HDMI Port: x1 HDMI 1.4 out (4K@60Hz)
DisplayPort: x1 Displayport 1.4 out (8K@60Hz)
Connectivity: x2 Type-A (USB3.2 Gen2) x2 Type-A (USB2.0)
RJ45 LAN Port: x1 (1G LAN)
Kensington Lock Hole: x1
Webcam
3M (2048*1536/15fps)
Power Supply
90W (19V, 4.74A) AC Adapter
Operating Temperature
0 ~ 50°C (32 ~ 122°F)
Storage Temperature
-20 ~ 50°C (-22 ~ 140°F)
