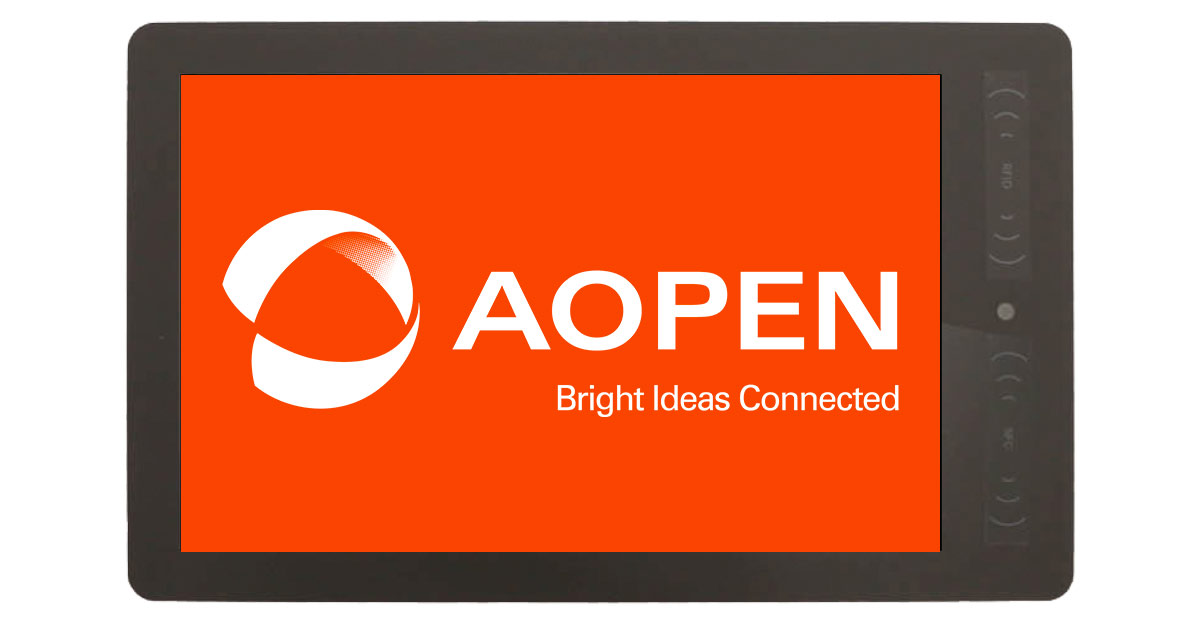

eTILE-X1032TP
10¨ Android Room Booking Device - Touch Panel Display, All-In-One PC
Description
Housing Material
Plastic with metal cover
Dimension (W x H x D)
275.4 x 170.4 x 25 mm
10.84 x 7.71 x 0.98 inch
10.84 x 7.71 x 0.98 inch
Weight
0.74 kg / 1.63 lbs
CPU
RK3568
Quad core cortex A55
Quad core cortex A55
Chipset
CPU built-in
Memory
Single Channel
DDR3L
1333 MHz
2GB (onboard)
DDR3L
1333 MHz
2GB (onboard)
Graphics
ARM Mali-T764 (integrated)
Resolution
10.1 ‘‘ 1280 x 800 (16:10)
Maximum Brightness
250 NITS
Panel Type
VA
View Angle (CR>10)
170 / 170
Response time
25ms
Contrast Ratio
800
Touch
PCT supports 10 points
Expansion Slot
-
Audio
Everest ES8316
LAN
Realtek RTL8211E
100/1000 Mbps
100/1000 Mbps
Storage
-
Security
-
Storage Bay
x 1 (eMMC 16GB onboard)
Front Camera
2MP
Side Panel I/O
-
System I/O
DC Jack x 1 (12V)
USB2.0 x 1
Line-Out x 1
RJ45 LAN x 1
USB OTG x 1
Serial Port x 1
RFID x 1
NFC x 1
Bluetooth 4.0 x 1
USB2.0 x 1
Line-Out x 1
RJ45 LAN x 1
USB OTG x 1
Serial Port x 1
RFID x 1
NFC x 1
Bluetooth 4.0 x 1
Watchdog Timer
-
IP Grade
IP65, IK07 (front panel)
Adapter
12V / 1.5A adapter
Input Voltage
AC 100 ~ 240V
Warranty
2 Years
MTBF
45.000 hrs
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-4 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity
95% RH 50 °C (Non-Condensing)
