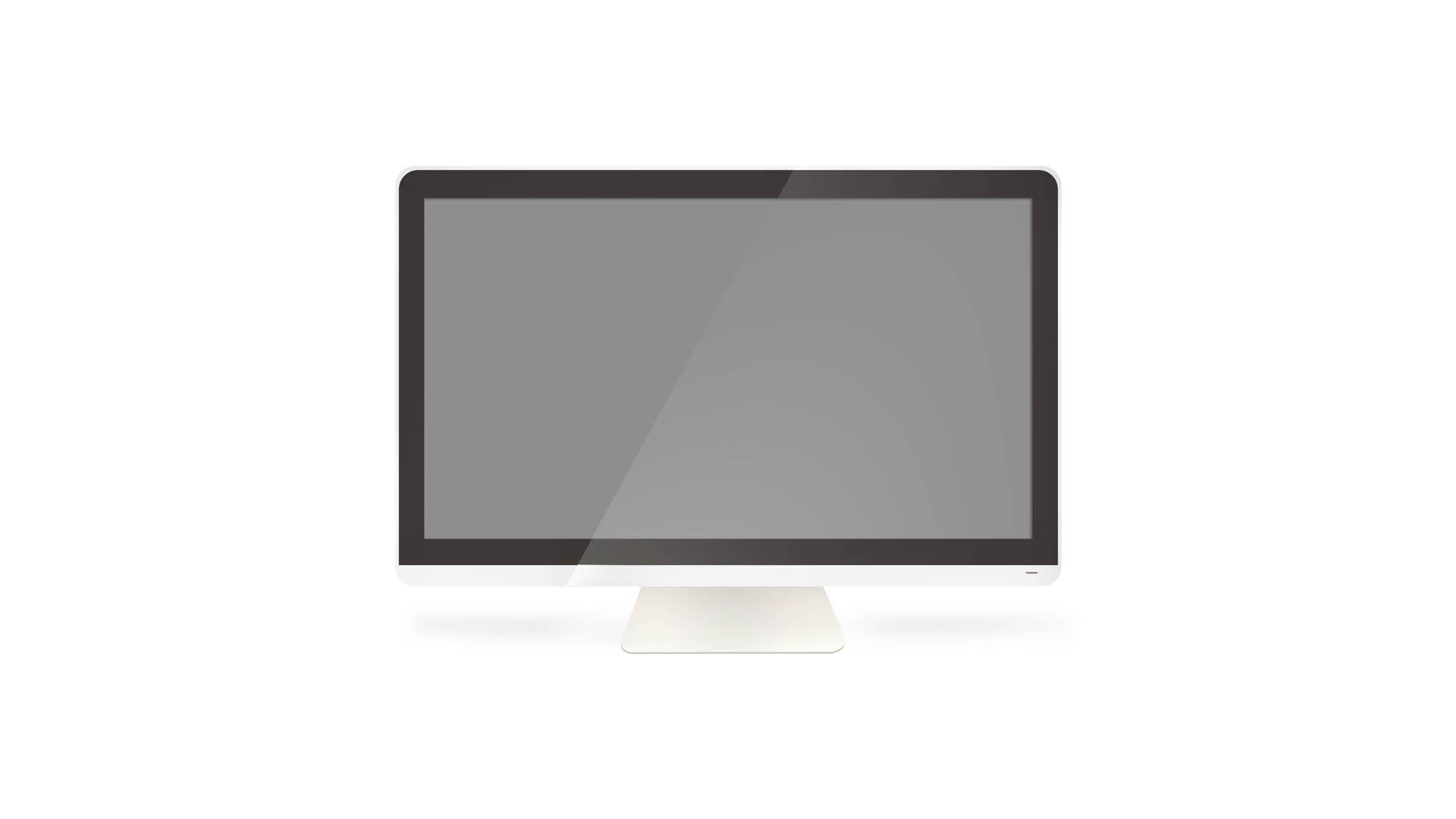

dTILE 2462-M
23.8" Certified medical grade monitor
Description
Unit Size (WxHxD mm)
581 x 400 x 175 mm (with stand)
581 x 360 x 69 mm (without stand)
581 x 360 x 69 mm (without stand)
Packaging Size (WxHxD mm)
702 x 277x 526 mm
Active Display Area (H x V)
527 x 296.2 mm
Pixel Pitch (H x V)
0.274 x 0.274 mm
Mounting
VESA 100 x 100 mm
Net Weight (kg)
9.5 kgs / 20.94 lbs
Gross Weight (kg)
12.5 kgs / 27.56 lbs
Resolution
23.8’’ 1920 x 1080 (scalable to 16:9/5:4/4:3/1:1)
Brightness (cd/m2)
250 NITS
Panel Type
AHVA
Viewing Angle
178 / 178
Response Time
14ms
Contrast Ratio
1000:1
Touch Technology
PCT supports 10 points with Anti Glare Coating
Gamma
Gamma 2.2 / DICOM®, 10 bits LUT
Side Panel I/O
Scrolling Button x 1
System I/O
DC Jack x 1
VGA x 1
DVI x 1
DP x 1
USB2.0 x 1
COM Port x 1
Audio-In x 1
VGA x 1
DVI x 1
DP x 1
USB2.0 x 1
COM Port x 1
Audio-In x 1
Adapter
60W / 24V / 2.5A
Input Voltage
AC 100 ~ 250V
Warranty
3 Years
Operation Temperature
0 ~ 40 °C (0 ~ 104 °F)
Operation Humidity
-20 ~ 60 °C (-4 ~ 140 °F)
Certifications
cTÜVus 60601-1, CB 60601, CE, FCC-B
