DEV7140
Compact Edge AI IPC with GPU Power
Description
CPU
Socket: LGA1700
Type:
Intel Core Processor Series 2 (Bartlett Lake-S) Desktop CPU
TDP=65W/35W
Type:
Intel Core Processor Series 2 (Bartlett Lake-S) Desktop CPU
TDP=65W/35W
Chipset
Intel Q670
Memory
Channel: Dual Channel
Type: DDR5 SO-DIMM x 2
Data rate: 4800/5600
Max Memory: 96G
Type: DDR5 SO-DIMM x 2
Data rate: 4800/5600
Max Memory: 96G
Graphics
Intel UHD Graphics
Expansion
PCIe Ge4 x16 slot x 1
M.2 slot x1, 2280 (key M for PCIe SSD)
M.2 slot x1, 2242 (key B for 4G/5G)
M.2 slot x1, 2230 (key E for WiFi)
M.2 slot x1, 2280 (key M for PCIe SSD)
M.2 slot x1, 2242 (key B for 4G/5G)
M.2 slot x1, 2230 (key E for WiFi)
Audio
Type: Realtek HD Audio
Channel: Stereo
Channel: Stereo
LAN
intel 2.5Gbe LAN x1 (i226V)
intel Giga LAN x1 (i219LM)
100/1000/2500 Mbps
intel Giga LAN x1 (i219LM)
100/1000/2500 Mbps
Storage
M.2 SSD x 1

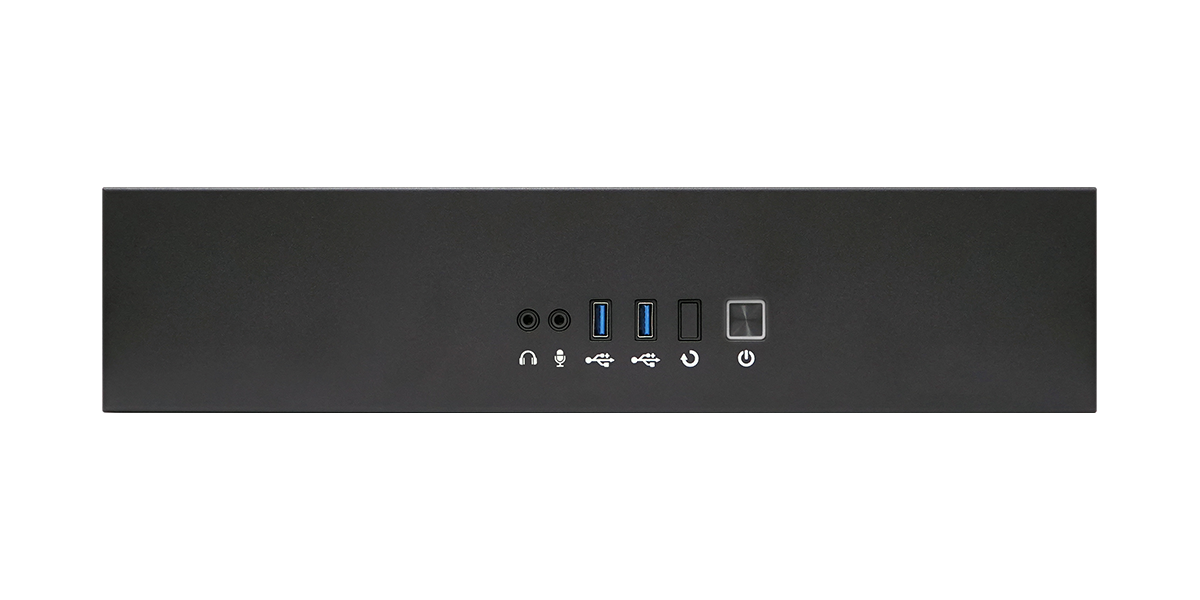

Front Panel I/O
USB 3.2 Port x 2
Others:
Power Button x1,
Reset Button x1,
Mic-in x1,
Speaker x1
Others:
Power Button x1,
Reset Button x1,
Mic-in x1,
Speaker x1
Rear Panel I/O
HDMI 2.0 Port x 1 (HDMI 1.4)
HDMI 2.0 Port x 1 (HDMI2.0)
USB 2.0 Port x 2
USB 3.2 Port x 4
RJ45 LAN Jack x 2
DisplayPort x 1 (DP 1.2)
Audio Set: Line-Out x 1, Mic-In x 1
COM Port x 2
HDMI 2.0 Port x 1 (HDMI2.0)
USB 2.0 Port x 2
USB 3.2 Port x 4
RJ45 LAN Jack x 2
DisplayPort x 1 (DP 1.2)
Audio Set: Line-Out x 1, Mic-In x 1
COM Port x 2
CPU Thermal Module
AOpen Thermal Module
Dimensions (W x H x D)
395 x 86.5 x 300 mm
15.55 x 3.41 x 11.81 inch
15.55 x 3.41 x 11.81 inch
Volume
10.25L
Weight
5.3 kgs / 11.66 lbs
Adapter
600W Flex PSU
Input Voltage
AC 100 ~ 240V
MTBF
50,000hrs
Operating Temperature
0 ~50ºC (32 ~ 122ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
95% RH (50ºC non-Condensing)
Support
Windows
Linux
Linux
