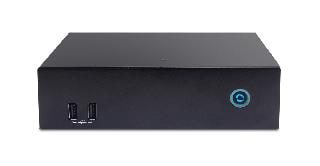

DE6340-R2
AMD Ryzen video wall controller for UHD video walls
Description
CPU
Socket: CPU on board(FP5)
Type: AMD EMBEDDED Ryzen R2000 SOCs CPU R2544/R2314
Type: AMD EMBEDDED Ryzen R2000 SOCs CPU R2544/R2314
BIOS
-
Chipset
-
AiCU
-
Memory
Channel : Dual Channel
Type: DDR4 SO-DIMM x 2
Data rate: 3200/2666
Max Memory: 32G
Type: DDR4 SO-DIMM x 2
Data rate: 3200/2666
Max Memory: 32G
Graphics
AMD Radeon™ graphics
Expansion
M.2 slot x1, 2242(key B for 4G/SSD)
M.2 slot x1, 2242(key B for SSD)
M.2 slot x1, 2230(key E for wifi)
M.2 slot x1, 2242(key B for SSD)
M.2 slot x1, 2230(key E for wifi)
Audio
Type: Realtek HD Audio ALC269Q
Channel: Stereo
Channel: Stereo
LAN
Realtek Gigabit Ethernet RTL8111H x1
Storage
2.5" SATA HDD x 1
M.2 SSD x 1
M.2 SSD x 1
Front Panel I/O
USB2.0 x 2
Rear Panel I/O
DC Jack x 1
HDMI 2.0 Port x 4 (HDMI2.0)
USB 3.2 Port x 2
RJ45 LAN Jack x 1
Audio Set: Line-Out x 1, Mic-In x 1
Antenna Holes x 2
COM Port x 1
Others: extend porwer SW x1
HDMI 2.0 Port x 4 (HDMI2.0)
USB 3.2 Port x 2
RJ45 LAN Jack x 1
Audio Set: Line-Out x 1, Mic-In x 1
Antenna Holes x 2
COM Port x 1
Others: extend porwer SW x1
CPU Thermal Module
AOPEN Thermal Module
Dimensions (W x H x D)
166 x 48 x 157 mm
6.54 x 1.89 x 6.18 inch
6.54 x 1.89 x 6.18 inch
Volume
1.25L
Weight
1.12 kgs / 2.46 lbs
WatchDog Timer
1 ~ 255 sec/min
Adapter
90W (19V, 4.74A) AC Adapter
A090A093LF
P/N: 90.CX157.0210
A090A093LF
P/N: 90.CX157.0210
Input Voltage
AC 100 ~ 240 V
Warranty
3 Year
MTBF
50.000 hrs
Operating Temperature
0 ~50ºC (32 ~ 122ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
95% RH (50ºC non-Condensing)
Support
Windows
Linux
Linux
TPM
2.0
