DE3650
Intel® Celeron® Processor J6412, Fanless design with remote management UHD (4K) media player.
Description
CPU
Socket: CPU on board
Type: Intel Celeron Elkhart Lake J6412 TDP=10W
Type: Intel Celeron Elkhart Lake J6412 TDP=10W
Chipset
N/A
AiCU
Support
Memory
Channel: Dual Channel
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 20G
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 20G
Graphics
Intel UHD Graphics for 10th Gen Intel Processors
Expansion
M.2 slot x 1, 2280(key M for PCIe SSD)
M.2 slot x 1, 2230(key E for wifi)
M.2 slot x 1, 2230(key E for wifi)
Audio
Type: Realtek HD Audio ALC897
Channel: Stereo
Channel: Stereo
LAN
Maxlinear GIGA LAN x 1 (GPY115)
Intel GIGA LAN x 1 (i210AT)
100/1000/1000 Mbps
Intel GIGA LAN x 1 (i210AT)
100/1000/1000 Mbps
Storage
M.2 SSD x 1

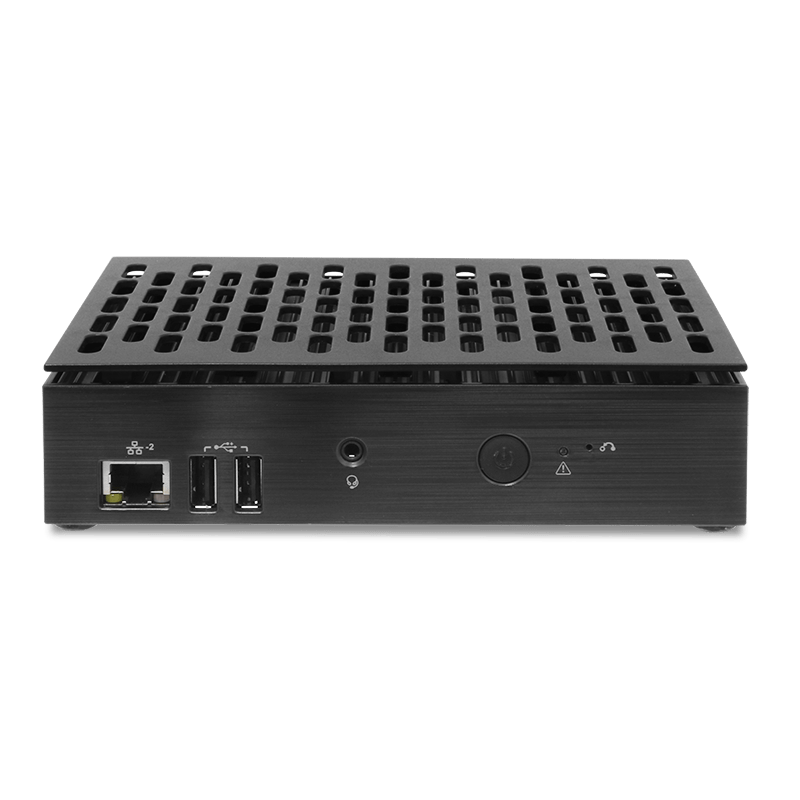

Front Panel I/O
USB 2.0 Port x2
Others:
Power Button x 1,
System error LED x 1,
BIOS recovery button x 1
Combo audio jack x 1
RJ45 LAN x 1
Others:
Power Button x 1,
System error LED x 1,
BIOS recovery button x 1
Combo audio jack x 1
RJ45 LAN x 1
Rear Panel I/O
DC Jack: 12/24V, 5525 x 1
HDMI 2.0 Port x 1
USB 2.0 Port x 2
USB 3.1 Port x 2
RJ45 LAN Jack x 1
DisplayPort miniDP x 1
Others:
Extend power SW x 1
OOB Remote Management RJ45 x 1
USB port for wifi x 1
HDMI 2.0 Port x 1
USB 2.0 Port x 2
USB 3.1 Port x 2
RJ45 LAN Jack x 1
DisplayPort miniDP x 1
Others:
Extend power SW x 1
OOB Remote Management RJ45 x 1
USB port for wifi x 1
CPU Thermal Module
AOPEN Fanless design
Dimensions (W x H x D)
166 x 43(35*) x 110 mm
*without top cover
*without top cover
Volume
0.68L
Weight
N.W: 0.61kg
G.W: 0.93Kg (Boxed)
G.W: 0.93Kg (Boxed)
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
40W (19V, 2.1A) AC Adapter
ADP-40KD BBZ
P/N: 90.DEF57.0010
ADP-40KD BBZ
P/N: 90.DEF57.0010
Input Voltage
AC 100 ~ 240V
Warranty
1 Year
MTBF
50,000hrs
Operating Temperature
-20 ~40ºC (-4 ~ 104ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
90% RH (40ºC non-Condensing)
Support
Windows
Linux
AiCU
Linux
AiCU
