DE3139
Compact 4K Dual-Display Signage Player
Description
CPU
Socket: CPU on board
Type: Intel Twin Lake-N N150 TDP=6.5W
Type: Intel Twin Lake-N N150 TDP=6.5W
Memory
Channel : Simgle Channel
Type: DDR5 SO-DIMM x 1
Data rate: 4800
Max Memory: 16G
Type: DDR5 SO-DIMM x 1
Data rate: 4800
Max Memory: 16G
Graphics
Intel Graphics
Expansion
M.2 slot x1, 2280(key M for SATA/PCIe SSD)
M.2 slot x1, 2230(key E for WiFi)
M.2 slot x1, 2230(key E for WiFi)
Audio
Type: Realtek HD Audio ALC897
Channel : Stereo
Channel : Stereo
LAN
Intel 2.5GLAN x 1 (i226V)
100/1000/2500 Mbps
100/1000/2500 Mbps
Storage
M.2 SSD x 1

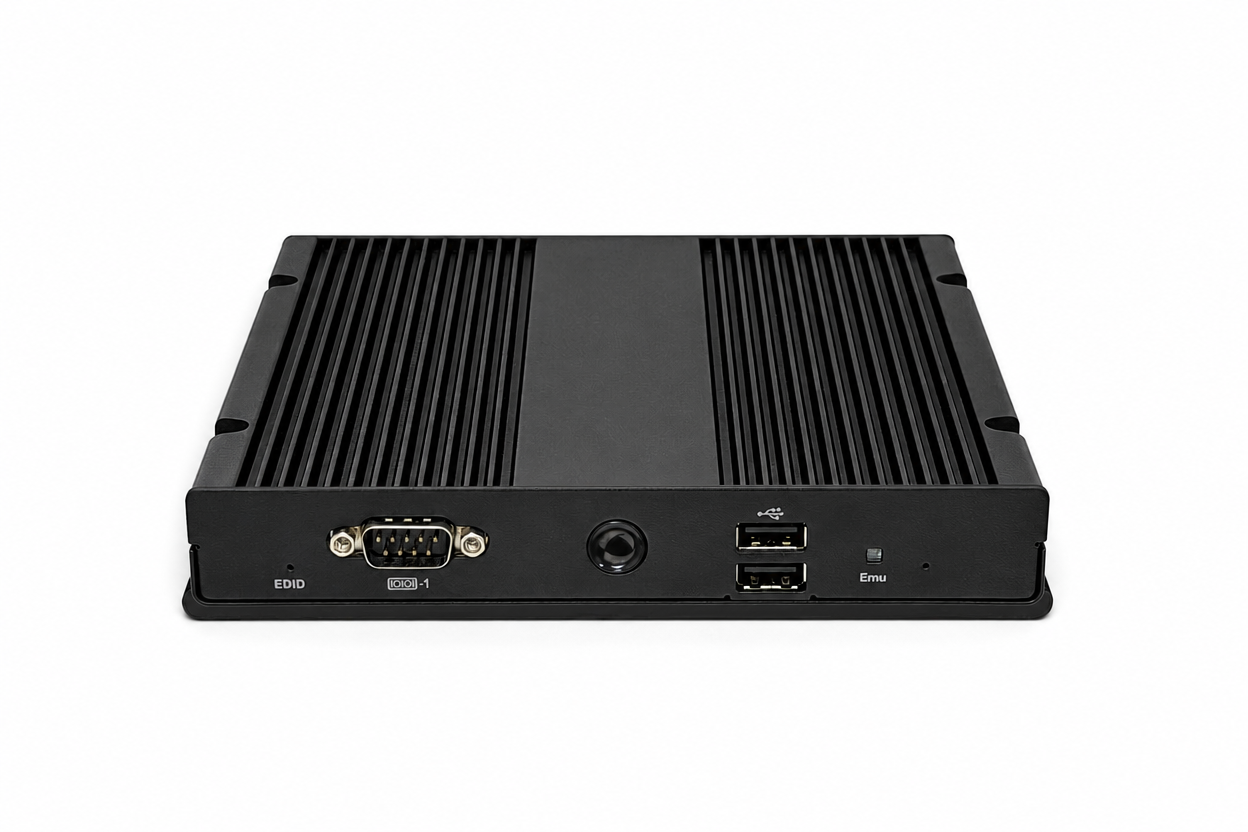

Front Panel I/O
USB 2.0 Port x 2
Others:
Power Button x 1,
EDID switch x 1,
EDID emulation LED x 1,
BIOS recovery button x 1
RS232 x 1
Others:
Power Button x 1,
EDID switch x 1,
EDID emulation LED x 1,
BIOS recovery button x 1
RS232 x 1
Rear Panel I/O
DC Jack 12/24V, 5525 x 1
HDMI 2.0 Port x 2
USB 2.0 Port x 2
USB 3.2 Port x 2
RJ45 LAN Jack x 1
Antenna Holes x 2
Others:
Combo audio jack x 1
Extend power SW x 1
HDMI 2.0 Port x 2
USB 2.0 Port x 2
USB 3.2 Port x 2
RJ45 LAN Jack x 1
Antenna Holes x 2
Others:
Combo audio jack x 1
Extend power SW x 1
CPU Thermal Module
AOpen Thermal Module
Dimensions (W x H x D)
166(W) x 25(H) x 158(D) mm
6.54(W) x 0.98(H) x 6.22(D) inch
6.54(W) x 0.98(H) x 6.22(D) inch
Volume
0.65L
Weight
0.8 kgs / 1.76 lbs
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
45W (19V, 2.37A) AC Adapter
ADP-45FE FBW ST
P/N: 90.00057.0110
ADP-45FE FBW ST
P/N: 90.00057.0110
Input Voltage
AC 100 ~ 240V
MTBF
50,000hrs
Operating Temperature
-20 ~45ºC (-4 ~ 113ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
90% RH (35ºC non-Condensing)
Support
Windows
Linux
Linux
