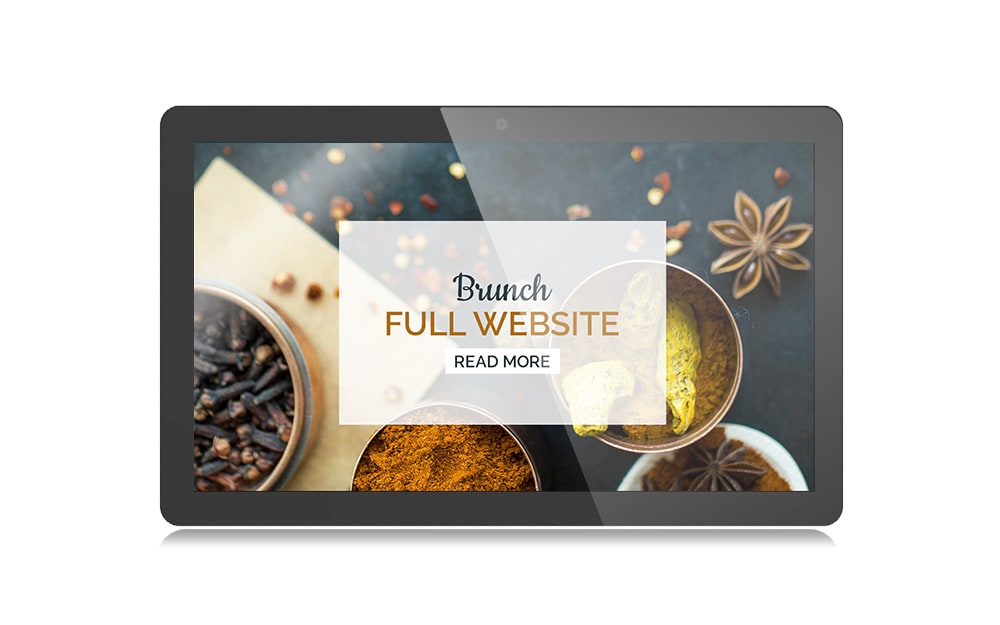

cTILE 19
Powered by the Chromebox Mini
Description
Housing Material
Metal
Dimension (W x H x D)
492.6 x 306.6 x 40.8 mm
19.4 x 12.1 x 1.6 inch
19.4 x 12.1 x 1.6 inch
Weight
5.45kg (12.21 lb)
CPU
Rockchip RK3288C
Quad Core Cortex-A17 1.8 GHz
Quad Core Cortex-A17 1.8 GHz
Chipset
Build-in CPU
Memory
Dual Channel, LPDDR3
1066,MHz, 4GB (on board)
1066,MHz, 4GB (on board)
Graphics
ARM Mali-T764
Resolution
19,5", 1920 x 1080
Maximum Brightness
250 nits
Panel Type
VA
View Angle (CR>10)
178/178
Response time
25ms
Contrast Ratio
700:1
Touch
Multi Touch PCT
Expansion Slot
--
Audio
Type Maxim MX98090
Channel Stereo
Channel Stereo
LAN
Gigabit
10/100/1000
10/100/1000
Storage
EMMC 16G SSD (on board)
Security
Kensington Lock Hole x1
Storage Bay
--
Front Camera
--
Side Panel I/O
--
System I/O
DC Jack x 1
USB 2.0 Port x 4
RJ45 LAN Jack x 1
COM PORT x 2 RJ50
WiFi Antenna port Embedded + Punch out for external antenna
USB 2.0 Port x 4
RJ45 LAN Jack x 1
COM PORT x 2 RJ50
WiFi Antenna port Embedded + Punch out for external antenna
Watchdog Timer
--
IP Grade
IP65
Adapter
40W/19V
Input Voltage
AC 100 ~ 240V
MTBF
50.000 hrs
Operating Temperature
0 ~ 40ºC
Storage Temperature
-10 ~ 60ºC
Relative Humidity
90% RH ( 40ºC non-condensing)
