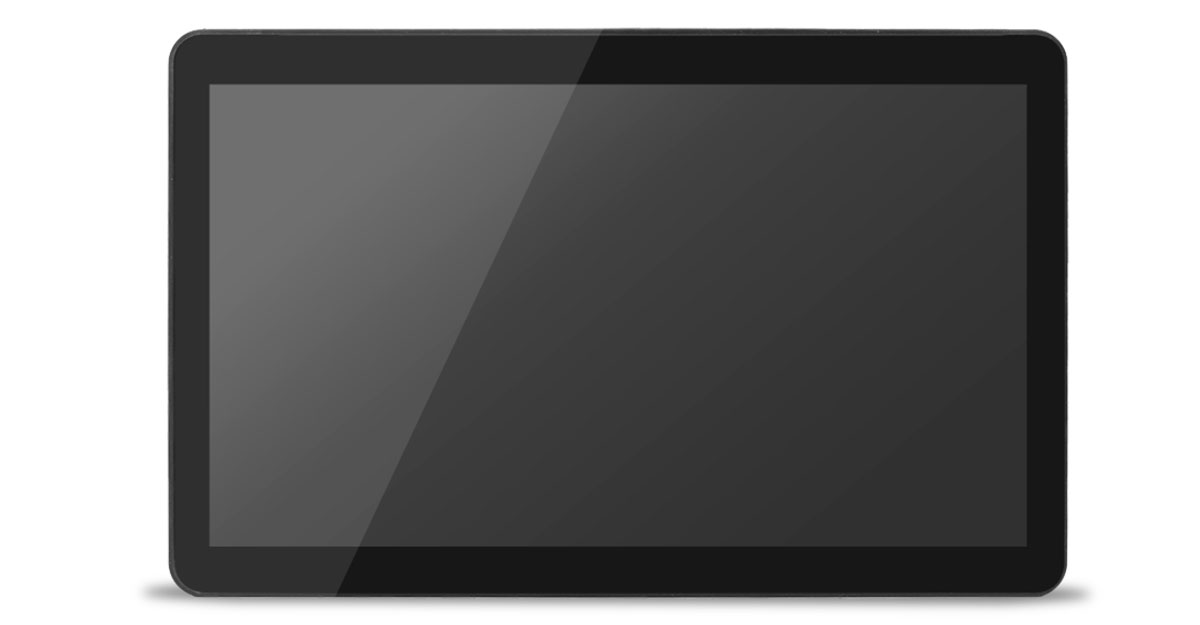

C-Tile 22 Gen II
ChromeOS Flex Certified | All-In-One Chrome OS Touchscreen PC
Description
Housing Material
IP Metal Design
Dimension (W x H x D)
525.4 x 332 x 51.8 mm
21.08 x 13.07 x 2.04 inch
21.08 x 13.07 x 2.04 inch
Weight
8.4 kgs / 18.52 lbs
CPU
Intel® Celeron™
Chipset
CPU Built-in
Memory
Dual Channel
DDR4
2666 MHz
4GB Memory
DDR4
2666 MHz
4GB Memory
Graphics
Intel® HD Graphics 610
Resolution
21.5'', 1920 x 1080 (16:9)
Maximum Brightness
250 NITS
Panel Type
VA
View Angle (CR>10)
178 / 178
Response time
25ms
Contrast Ratio
3000:1
Touch
E-LED
Expansion Slot
-
Audio
3.5mm Audio Jack Combo
LAN
10 / 100 / 1000 Mbps
Storage
M.2 2280 (Default 32GB)
Security
Hidden Keypad
Secure Cable Cover
Google TPM
Secure Cable Cover
Google TPM
Storage Bay
-
Front Camera
-
Side Panel I/O
-
System I/O
DC Jack x 1
USB3.0 x 2
COM Port x 1
Audio Set x 1
RJ45 LAN x 1
Others: Kensington Lock Hole x 1, power Button x 1
USB3.0 x 2
COM Port x 1
Audio Set x 1
RJ45 LAN x 1
Others: Kensington Lock Hole x 1, power Button x 1
Watchdog Timer
-
IP Grade
Front Panel IP65
Side Panel IPX2
Side Panel IPX2
Adapter
90W / 19V
Input Voltage
AC 100 ~ 240V
Warranty
3 Year
MTBF
50.000 hrs
Operating Temperature
0 ~ 40ºC (32 ~ 104ºF)
Storage Temperature
-30 ~ 60 °C (-22 ~ 140°F)
Relative Humidity
90% RH (40°C Non-Condensing)
