AT24356

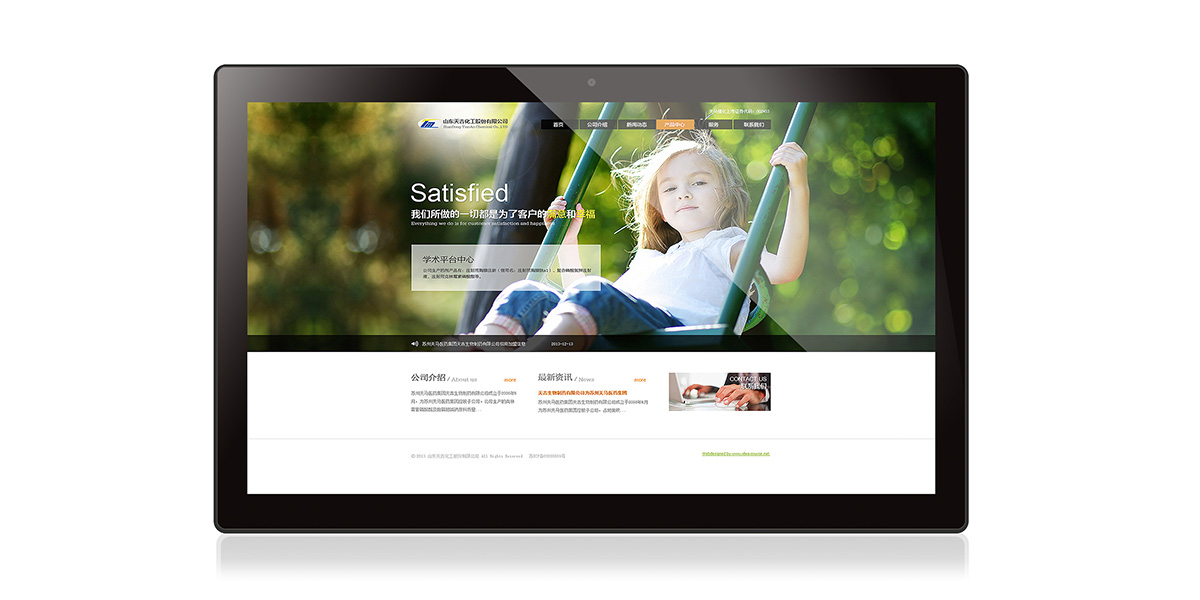

24" FHD touch screen, suitable for digital signage and smart kiosk applications
Description
Dimension (W x H x D)
580x349.2x32.5mm
CPU
RK3568 Quad core cortex A55
Memory
RAM: 2GB (optional 4GB)
Internal memory: 16GB (optional 32GB/64GB)
Internal memory: 16GB (optional 32GB/64GB)
Resolution
1920*1080
Maximum Brightness
250cdm²
Panel Type
24” LCD HD panel
View Angle (CR>10)
85/85/85/85 (L/R/U/D)
Contrast Ratio
800
Touch
10-point capacitive touch
Aspect ratio
16:9
LAN
WiFi: 802.11b/g/n
Ethernet: 100M/1000M Ethernet
Bluetooth: Bluetooth 4.2
Ethernet: 100M/1000M Ethernet
Bluetooth: Bluetooth 4.2
Side Panel I/O
Card slot: SD, support up to 64GB
Mini USB: USB OTG
USB: USB host 3.0
USB: USB host 2.0
Power Jack: DC power input
RJ45: Ethernet interface
HDMI: HDMI output
Earphone: 3.5mm earphone
Mini USB: USB OTG
USB: USB host 3.0
USB: USB host 2.0
Power Jack: DC power input
RJ45: Ethernet interface
HDMI: HDMI output
Earphone: 3.5mm earphone
Adapter
Adapter, 12V/4A
Media plays
Video format:
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
Audio format: MP3/WMA/AAC etc.
Photo: JPEG
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
Audio format: MP3/WMA/AAC etc.
Photo: JPEG
Others
Speaker: 2*3W
Camera: 5.0MP
NFC: Yes (option by request)
Microphone: Yes
VESA: 100x100mm
Language: Multi-language
Working temp: 0°C~40°C degree
Certificates: CE, FCC, RoHS
Camera: 5.0MP
NFC: Yes (option by request)
Microphone: Yes
VESA: 100x100mm
Language: Multi-language
Working temp: 0°C~40°C degree
Certificates: CE, FCC, RoHS
Accessories
Adapter, 12V/4A
User manual
Stand
User manual
Stand
