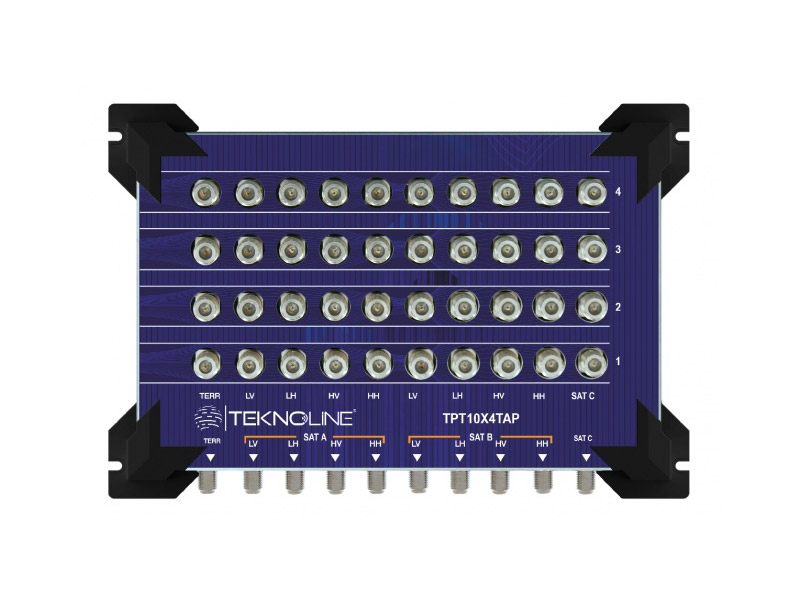

TPT10X4
[TPT10X4] Active Group Tap Off
Description
- TPT 10X4 ACTIVE TAP OFF
- Tap Off ACTIVE
|
TPT10X4 |
TPT14X4 |
TPT17X4 |
|
|
Frequency operation range SAT |
950-2150Mhz |
950-2150Mhz |
950-2150Mhz |
|
Frequency operation range TERR |
47-870Mhz |
47-870Mhz |
47-870Mhz |
|
SAT + TERR in |
9+1 |
13+1 |
16+1 |
|
SAT + TERR out |
10X4 |
14X4 |
17X4 |
|
SAT Gain |
+5dB±1 |
+5dB±1 |
+5dB±1 |
|
TERR Gain |
-7dB±1 |
-7dB±1 |
-7dB±1 |
|
SAT-SAT Isolation |
>31dB |
>31dB |
>31dB |
|
SAT-TERR Isolation |
>50dB |
>50dB |
>50dB |
|
Max. signal out SAT |
100dBµV |
100dBµV |
100dBµV |
|
Operation voltage |
18V 1,5A |
18V 1,5A |
18V 2A |
|
Total current |
130mA |
160mA |
200mA |
|
Operation temperature |
-20...+ 50C° |
-20...+ 50C° |
-20...+ 50C° |
|
Dimensions |
345x152x50mm |
290x154x52mm |
227x154x50mm |
|
Weight |
660gr |
870gr |
1100gr |
