TPT 17X4 RACK TİPİ

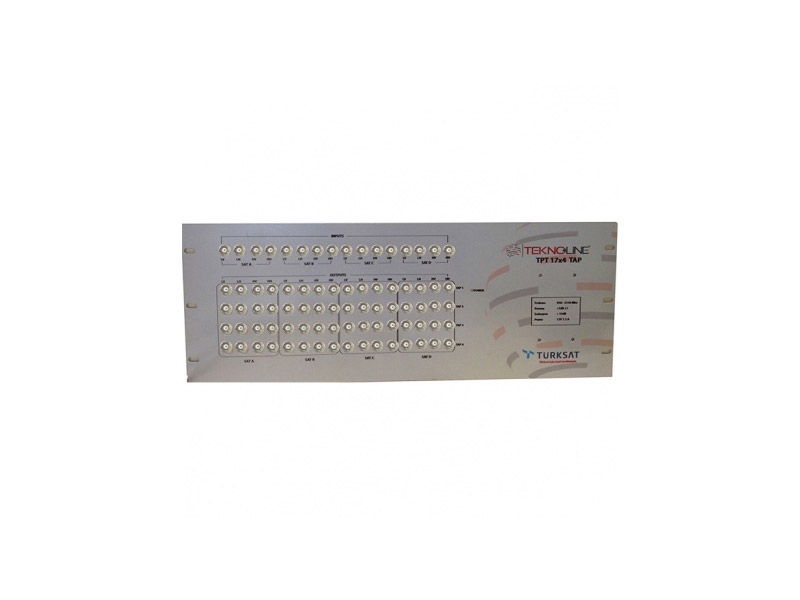

[TPT 17X4 RACK TİPİ] ACTIVE GROUP TAP(Rack Type)
Description
- TPT17X4 ACTIVE TAP OFF
- TAP OFF ACTIVE
| TPT 10/4 | TPT 14/4 | TPT 17/4 | |
|
Frequency operation range SAT |
950-2150Mhz |
950-2150Mhz |
950-2150Mhz |
|
Frequency operation range TERR |
47-870Mhz |
47-870Mhz |
47-870Mhz |
|
SAT + TERR in |
9+1 |
13+1 |
16+1 |
|
SAT + TERR out |
10x4 |
14x4 |
17x4 |
|
SAT Gain |
+5dB±1 |
+5dB±1 |
+5dB±1 |
|
TERR Gain |
-7dB±1 |
-7dB±1 |
-7dB±1 |
|
SAT-SAT Isolation |
>31dB |
>31dB |
>31dB |
|
SAT-TERR Isolation |
>50dB |
>50dB |
>50dB |
|
Max. signal out SAT |
100dBµV |
100dBµV |
100dBµV |
|
Operation voltage |
18V 1,5A |
18V 1,5A |
18V 2A |
|
Total current |
130mA |
160mA |
200mA |
|
Operation temperature |
-20...+ 50C° |
-20...+ 50C° |
-20...+ 50C° |
|
Dimensions |
345x152x50mm |
290x154x52mm |
227x154x50mm |
|
Weight |
660gr |
870gr |
1100gr |
| Desi | 2.765 |
