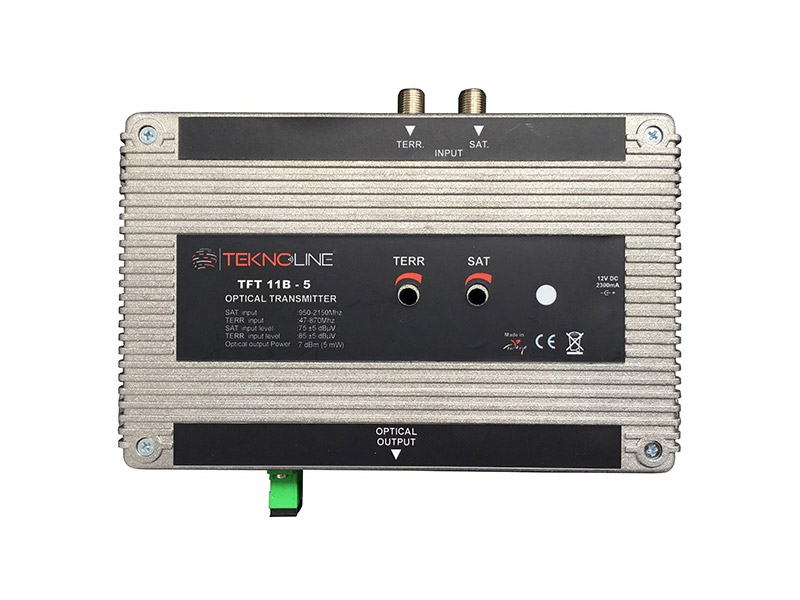

TFT 11B-5
[TFT 11B-5] Fiber Optic Transmitter 1 RF + 1 IF
Description
- 1 RF + 1 IF Transmitter 1 RF + 1 IF 2 Input 1 SC/APC Optic Output with Amplifier
| Input | 2 F connector |
| Output | 1 Optical SC/APC |
| TERR | 47-870MHZ |
| SAT | 950-2150MHZ |
| Sat Gain | 26dB±1 |
| Terr Gain | 33dB±2 |
| Attenuator | 20dB |
| Optic Wavelength | 1310nm |
| Optic Output Power | 5mW |
| RF Input Level | 80±5dB |
| IF Input Level | 70±5 dB |
| Operating Temperature | -40+85°C |
| Operating Voltage | 18V 4A |
| LNB Power | 18V |
| Dimensions | 195x130x40mm |
| Weight | 600gr. |
