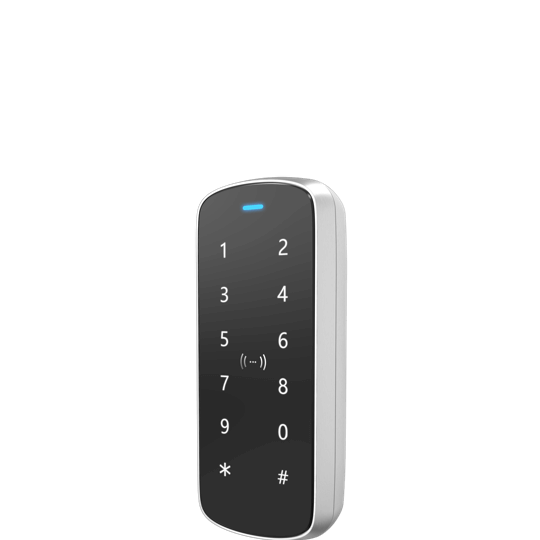

M3 Pro
Lecteur RFID, emprunte, reconnaissance faciale contrôle d'accès compact outdoor et gestion de temps de présence polyvalents
Description
Lecteur RFID, emprunte, reconnaissance faciale contrôle d'accès compact outdoor et gestion de temps de présence polyvalents
Touching Miracles
Most Reliable Outdoor
What is the M Series?
M Series standalone access control devices is suitable for various outdoor environment, with its professional IP65 and IK10 design. M series is integrated with fingerprint and keypad touchable and RFID card, NFC and optional Bluetooth touchless identification ways. M series can be applied into direct and distributed door controlling, wiegand output to third party controller, and also can in integrated with turnstiles, outdoor consumer terminals, etc.
IP65 professional water proof design
Bluetooth Magic Shake Open
EM,Mifare,NFC Card compatible
IK10 professional vandal proof design
Full Metal casing, anti-UV for long life time
-30 to 60 degree wide range temperature adaptability
Multiple recognition methods
W Series integrates Anviz latest Biometrics Algorithm including Fingerprint and face recognition, which ensures the safe and quick identification and access.
-
RFID
- Support EM card and Mifare card
- Support standard CR80 card and RFID keyfobs and tags
- Support up to 30mm distance opening upon the card type
-
Fingerprint
- Suitable for both wet and dry fingers
- Automatically heals the broken lines in fingerprint images
- Extraction of features in worn fingerprints
- Fingerprints template auto update
-
Facial
- Lastest IR technology ensure 24/7 all time recognition
- 15 images full angles collection ensures accurate recognition
- Contactless solution for quick and convinient access
Product Comparison sheet
| English name | Outdoor RFID standalone Access Control |
Outdoor fingerprint and RFID standalone Access Control | Outdoor fingerprint and RFID standalone reader with keypad |
| Image |  More M3pro |
 More M5 |
 More M7 |
| Type | M3 Pro | M5 Plus | M7 |
| Capacity | |||
|---|---|---|---|
| User | 3,000 | 3,000 | 3,000 |
| Finger | / | 3,000 | 3,000 |
| Card | 3,000 | 3,000 | 3,000 |
| Record | 200,000 | 50,000 | 50,000 |
| I/O | |||
| Interfaces | TCP/IP, RS485, Mini USB | TCP/IP, RS485, Mini USB, Wi-Fi, Bluetooth | TCP/IP, RS485, Mini USB |
| POE | / | / | support |
| Features | |||
| Identification mode | password,RFID Card | Finger, password, card(standard EM), Crosschex E-key APP | Finger, password,RFID card |
| RFID card type | Dual Frequency for EM and Mifare | Standard EM | Standard EM, optional mifare |
| Sensor | / | touch active sensor | touch active sensor |
| Scanning Area | / | 22m*18mm | 22m*18mm |
| LED Indicator | support | support | support |
| Working Temperature | -30℃~60℃ | -35°C~60°C | -30℃~60℃ |
| Humidity | 20% to 90% | 20% to 90% | 20% to 90% |
| Power Input | DC 12V 1A | DC 12V 1A | DC 12V 1A |
| IK Grade | IK10 | IK10 | / |
| IP grade | IP65 | IP65 | IP65 |
