S30810-Q2191-C

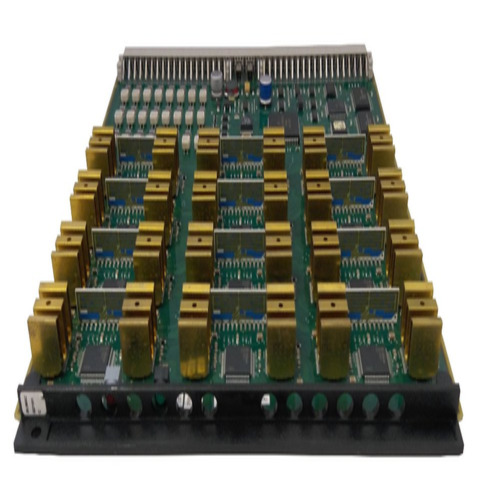

An SLMAC board interfaces between the system and analog devices. These boards convert signals from analog-to-digital and from digital-to-analog. They support the following analog devices:
- Announcement recorders
- Dial pulse or DTMF analog single-line telephones
- Fax machines
- Modems
- Music-on-hold equipment
- Paging equipment
The SLMAC board provides 24 analog channels. This board can receive instructions from the operating system through the LTUCX board. It supports a line loop resistance of 1000 Ohms, which includes the resistance of the terminal equipment. It allows stations to be 2.6 cable kilometres (1.6 cable-miles of #26 American Wire Gauge [AWG] cable) from the system.
The SLMAC board generates its own ringing voltage and does not require an external ring generator. It supports V.90 (56K) modems with data transmission rates up to 50 kilobits per second (Kbps)
The SLMAC board has SIPAC shelf connectors.
Additional Information:
- Delivery Time: Within seven working days
- Packaging Details: Boxed
