QSFP-DD-400G-SR4

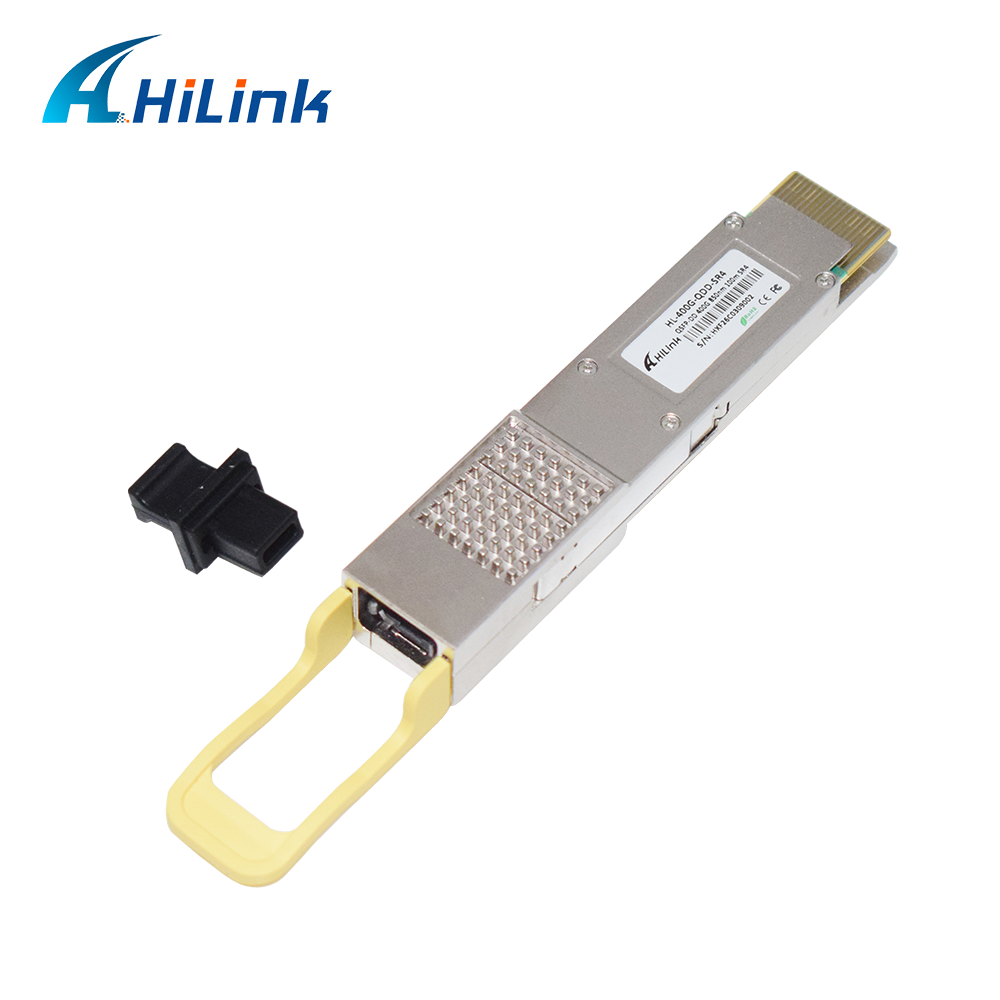

QSFP-DD-400G-SR4 QSFP-DD 400G SR4 PAM4 850nm 100m MTP/MPO-12 OM4 FEC Optical Transceiver Module
Description
Product description
400G QSFP-DD MSA Compliant
CMIS compliance 4x106.25Gb/s PAM4
Optical Interface: IEEE 802.3db compliant
l Electrical Interface: IEEE 802.3 2022 400GAUI-8
l Support 425Gb/s aggregate bit rate
l 4 Parallel optical lanes
l MPO-12 connector
l Maximum link length of 70m on OM3 or 100m on OM4
l Operating case temperature 0 to 70℃
l Maximum power consumption 8W
Applications
The transceiver is designed for Ethernet, Telecom and Infiniband use cases.
The application advertisements listed below allow host software to select proper application following CMIS definition
l Application case 1, 1x400G SR4, 1 of 400G per port point to point connections.
Application case 2, 4x100G SR, 4 of 100G per port point to point connections.
