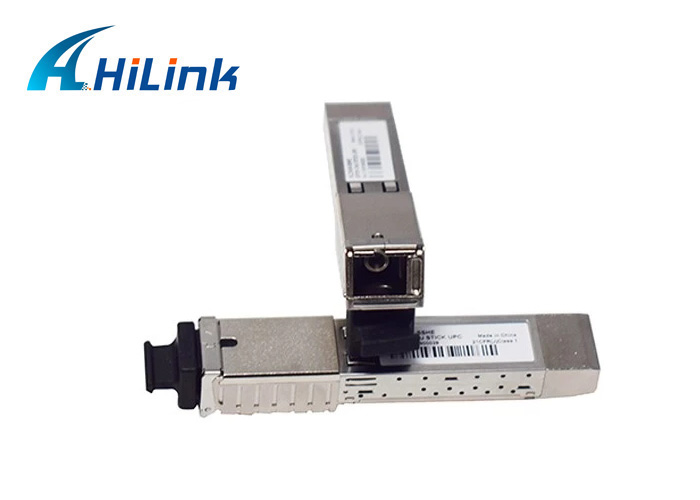

GPON ONU Stick SFP

Description

GPON SFP with MAC is a G.984.2 (GPON) Optical Network Terminal (ONT) with Small Form-factor Pluggable (SFP) packaging. This product integrates a bi-directional optical transceiver function and GPON MAC function. By being plugged into the customer premise equipment (CPE) with a standard SFP port directly, it provides an asymmetric 1.244 Gbps upstream / 2.488 Gbps downstream GPON uplink to the CPE without requiring a separate power supply.

Product Features

Support ITU-T G.984 GPON Networks application

Support ITU-T G.988 ONU management and control interface (OMCI) specification

Support Dying Gasp function (optional)

Configurable 1G or 2.5G UNI

Single fiber bi-directional data links with asymmetric 1.244Gbps Tx and 2.488Gbps Rx

1310nm burst-mode transmitter with DFB laser

1490nm continuous-mode receiver with APD-TIA

2-wire interface for integrated digital diagnostic Monitoring

SFP package with SC/UPC or SC/APC receptacle optical interface

Single +3.3V power supply

Operation case temperature -40~85°C for industrial and 0~70°C for commercial

RoHS6 compliance
