100G QSFP28
100G QSFP28 CWDM4 2KM
Description
Product description

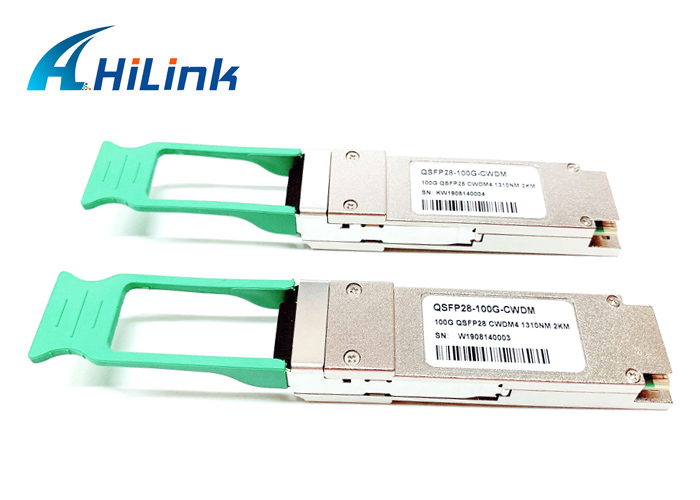

Hilink QSFP28 Optical Transceiver Module 100G 4Channels CWDM4 QSFP28 2KM dual LC Single mode
100G Hilink QSFP28 CWDM4 is designed to operate over single-mode fiber system using 4X25 CWDM channel in 1310 band and links up to 2km. The hilink module converts 4 inputs channel of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.
Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271 nm, 1291 nm, 1311 nm and 1331 nm.
It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. Single-mode fiber(SMF) is applied in this module.
