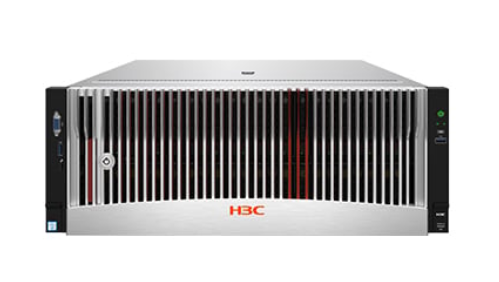

R6900 G5 Front

CPU

4 x 3^rd generation Intel® Xeon® Cooper Lake SP series

(Each processor up to 28 cores and maximum 250W power consumption)

Chipset

Intel® C621A

Memory

48 × DDR4 DIMM slots , maximum 12.0 TB*

Up to 3200 MT/s data transfer rate and support for both RDIMM and LRDIMM

Up to 24 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass)

Storage controller

Embedded RAID controller (SATA RAID 0, 1, 5, and 10)

Standard PCIe HBA cards and storage controllers, depending on model

FBWC

8 GB DDR4 cache, depending on model , support supercapacitor protection

Storage

Maximum Front 50SFF, Support SAS/SATA HDD/SSD Drives

Maximum 24 front U.2 NVMe Drives

SATA M.2 SSDs/2 × SD cards , depending on model

Network

1 × onboard 1 Gbps management network port

OCP 3.0 × 16 open slot to install 4 × 1GE copper ports/2 × 10GE/2 x 25GE fiber ports

Standard PCIe 3.0 Ethernet Adapters

PCIe Standard slots for 1/10/25/40/100GE/IB Ethernet Adapter，

PCIe slots

18 × PCIe 3.0 FH standard slots

Ports

VGA connectors (Front and Rear) and serial port(RJ-45)

6 × USB 3.0 connectors (2 front, 2 rear, 2 internal)

1 dedicated management connector

GPU

9 × single-slot wide or 3 × double-slot wide GPU modules

Optical drive

External optical disk drive , Optional

Management

HDM (with dedicated management port) and H3C FIST, support LCD touchable smart model

Security

Intelligent Front Security Bezel *

Support Chassis Intrusion Detection

TPM2.0

Silicon Root of Trust

Two-factor authorization logging

Power supply

Support 4 × Platinum 1600W*(supports 1+1/2+2 redundancy) ,

800W –48V DC power supplies (1+1/2+2 redundancy)

8 × Hot swappable fans

Power consumption

Themaximumpowerconsumptionofthehostis655.2W(includingthemainboardandfanmodule,butexcludingoptionalcomponentssuchasCPUandmemory).Thepowerconsumptionvariesaccordingtodifferentconfigurations.

Standards

CE，UL , FCC，VCCI，EAC, etc.

Operating temperature

5°C to 45°C (41°F to 113°F)

The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.

Dimensions (H × W × D)

4U Height

Without a security bezel: 174.8 × 447 × 799 mm (6.88 × 17.59 × 31.46 in)

With a security bezel: 174.8 × 447 × 830 mm (6.88 × 17.59 × 32.67 in)
