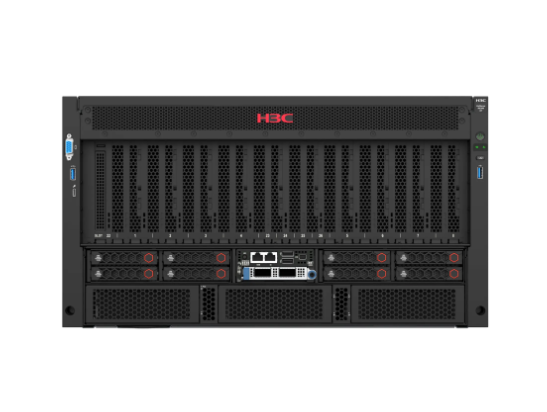

R5300 G7

CPU

Supports 2 Intel® 6th Generation Xeon® Scalable Processors, TDP 350W

GPU

Supports 8 FHFL DW PCIe interface GPUs

Memory

Supports 32 x 6400MT/s DDR5 or 16 x 8000MT/s MCR DIMM memory

Storage controller

Supports 1 high-performance storage controller

Supports RAID 0/1/10/5/6/50/60

PCIe slots

Pass-through: Supports up to 2 PCIe 5.0 available slots

CX8: Built-in 4*800G IB network ports or 8*400G Eth network ports and additionally supports 5 PCIe 5.0 available slots

Storage

16 x 2.5-inch SAS/SATA/NVMe, supporting 2 onboard M.2

12 x 2.5-inch SAS/SATA/NVMe, supporting 2 onboard M.2

8 x 2.5-inch SAS/SATA/NVMe, supporting 2 onboard M.2

Network

Supports 1 OCP 3.0 and Multihost network adapters

Fan

Supports 13 x 8080 fans with N+1 redundancy

Management

HDM agentless management tool (with independent management port) and H3C UniSystem

Supports LCD touch-enabled intelligent management module

Supports 64M local video memory*

Optional U-Center data center management platform

Ports

5 × USB connectors

1 RJ45 HDM dedicated network connection

Supports 2 VGA interfaces

Supports 1 TypeC Debug port dedicated management interface

Optional 1 management serial port*

Power supply

Supports 10 hot-swappable power supplies, supports N+N redundancy

Operating temperature

5°C to 35°C (41°F to 95°F) (The operating temperature varies by server configuration. For more information, see the product technical documentation.)

Dimensions

(H×W×D)

6U chassis (H×W×D)

263.7 × 447 × 880 mm (10.38 × 17.60 × 34.65 in)
