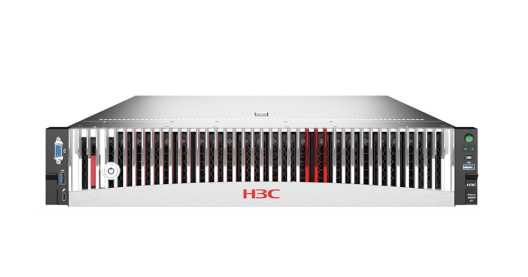

R4950 G7

CPU

2 AMD EPYC 9005 series processors

Up to 192 cores per processor, maximum power 500W

Memory

Up to 24 DDR5 memory slots, up to 6400MT/s

RAID controller

Optional RAID controller based on standard PCIe slot

Storage

Up to 41* 2.5-inch SATA/SAS hard drives

Up to 20* 3.5-inch SATA/SAS hard drives

Up to 28 U.2 NVMe SSDs

Up to 2 2280/22110 SATA/NVMe M.2 hard drives

Network

Up to 2 onboard OCP 3.0 NICs, supporting Multi-Host

Network adapter based on standard PCIe slot

InifiBand

Expansion slots

Up to 10 PCIe5.0 standard slots

I/O ports

Front: Left chassis ear (optional): 1 VGA, 1 USB3.0, 1 Type C port. Right chassis ear: 1 USB3.0

Built-in: 1 USB3.0

Rear: 1 VGA, 1 serial port (optional)*, 2 USB3.0, 1 HDM dedicated network port

GPU

Up to 4 double-width or 8 single-width GPU modules

Management

H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download)

Support LCD touchable intelligent management module

Security

Chassis intrusion detection

TCM/TPM security module

CPU built-in dedicated security processor

Power supply

Titanium 1600W/3200W, Platinum 1300W/1600W/2000W/2700W power supply in 1+1 redundancy, hot-swappable

4 8056 fans, supporting single rotor failure

Standards

CE,UL, FCC,VCCI,CB, etc.

Operating temperature

5ºC to 45ºC (41ºF to 113ºF)*

Dimensions

(H×W×D)

2U

Without a security bezel: 87.5x445.4x800 mm (3.44x17.54x31.5 in)

With a security bezel: 87.5x445.4x828 mm (3.44x17.54x32.6 in)
