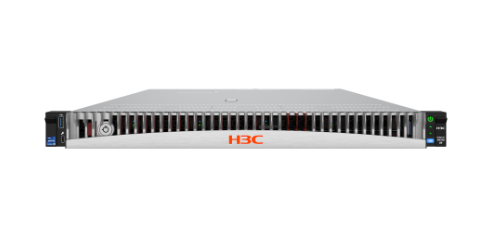

R4700 G6
|
CPU |
2 4th Generation Intel®Xeon® Sapphire Rapids / 5th Generation Intel®Xeon® Emerald Rapids SP series 64 cores for each processor and 385W power consumption HBM technology |
|
Chipset |
Intel®C741 |
|
Memory |
32 DDR5 RDIMM slots, 5600 MT/s data rate, 8TB on 2 CPU configuration with 256G DDR5 RDIMM |
|
Raid controller |
Embedded RAID controller, supports SATA RAID 0/1/10/5 Optional standard PCIe HBA controller or raid controller |
|
FBWC |
8 GB Cache, support Supercapacitor protection |
|
Storage |
Front 10SFF bays, rear 2SFF bays Front 4LFF bays SAS/SATA HDD/SSD drives,12 U.2 NVMe drives SATA/NVMe M.2 Kit, DSD module (2xSD card kit) |
|
Network |
Onboard 1Gbps management network port Onboard OCP 3.0 slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs PCIe Optional : Standard slots for 1/10/25/100GE ethernet adapter, IB card |
|
Expansion slots |
4 PCIe standard slots (3 PCIe 5.0 and 1 PCIe 4.0) and 2 onboard OCP 3.0 slots CXL1.1 |
|
Ports |
Standard: 2 VGA port (1 front, 1 rear), 4 USB ports (1 front, 2 rear,1 internal), 1 front Type-C port Optional: 1 rear management port |
|
GPU |
4 single-slot GPU modules |
|
Optical Drive |
External optical disk drive, optional |
|
Management |
H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) Support LCD touchable intelligent management module |
|
Security |
Intelligent front security bezel* Chassis intrusion detection TPM2.0 2FA for HDM Intel SGX2.0 and PFR3.0 |
|
Power supply |
1+1 Redundancy power supply Titanium 850W/1600W Platinum 800W/1300W/1600W/2000W DC power supply 8 Hot swappable redundant fans |
|
Standards |
CE, UL, FCC, VCCI, CB, etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions (H×W×D) |
1U Height Without a security bezel: 42.9 x434.6x777mm (1.68x17.11x30.59 in) With a security bezel: 42.9x434.6x805mm (1.68x17.11x31.7 in) |
