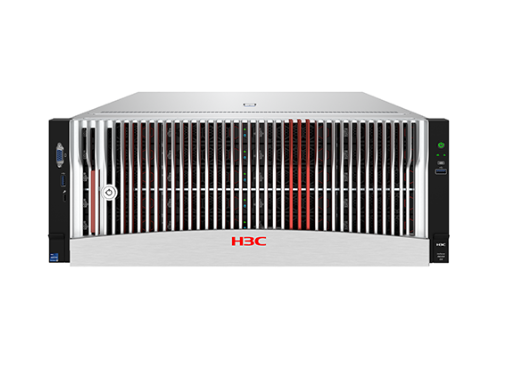

R4300 G6

CPU

2 4th Generation Intel®Xeon®Sapphire Rapids/5th Generation Intel®Xeon®Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption

Supports HBM technology

Chipset

Intel®C741

Memory

32×DDR5 RDIMMs (maximum)

Up to 5600 MT/s Data Rate, Dual-socket processor with maximum capacity of 8TB

Storage controller

Standard PCIe HBA Controller or Raid Controller

Support NVMe RAID

FBWC

8 GB Cache, support Supercapacitor protection

Storage

Supports SAS/SATA/NVMe U.2/EDSFF E1.S Drives

Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF; Support internal 4LFF or 8SFF*; Optional 18 NVMe drives*

Support 2 M.2 as boot disk

Network

1 x onboard 1 Gbps HDM management Ethernet port

2 x OCP3.0 Ethernet adapter support NCSI function and hot-swap

PCIe Standard Slots for 10/25/100/200Gb Ethernet Adapter or 100/200/400Gb InfiniBand card

PCIe slots

Up to 10 x PCIe standard slots

Supports PCIe 5.0 and 2x dedicated OCP3.0 Slots

Ports

2 x VGA connector (Front and Rear) and 1 x serial port

5 x USB connectors (2 at the front and 2 at the rear and 1 at the internal), 1 × Type C for HDM

GPU

Up to 2 double-width or 8 single-width GPUs*

Optical drive

External optical drive

Management

HDM Management System(with rear independent management Ethernet port and front dedicated Type C port) H3C iFIST/UniSystem

U-Center data center management platform(Optional)

Security

Supports chassis intrusion detection

Supports TCM/TPM security modules

Dual-factor authentication

Power supply and cooling

1+1 Redundancy power supply

Optional Platinum-level l 800W/1300W/1600W/2000W/2400W/2700W

-48V/336V DC power module

Optional Titanium-level power supply, CQC31-461288 certified power supply level V

Hot swappable redundant Fans

Standards

CE, UL, FCC, VCCI, CB, etc.

Operating temperature

Operating temperature: 5ºC to 40°C (41ºF to 104ºF)

Storage Temperature: -40~85ºC (-41ºF to 185ºF)

The maximum operating temperature varies by server configuration. For more information, see the technical documentation for

the device

Dimensions

(H×W×D)

4U Height

Without a security bezel: 174.8×447×781 mm (6.88×17.60×30.75 in)

With a security bezel: 174.8×447×809 mm (6.88×17.60×31.85 in)
