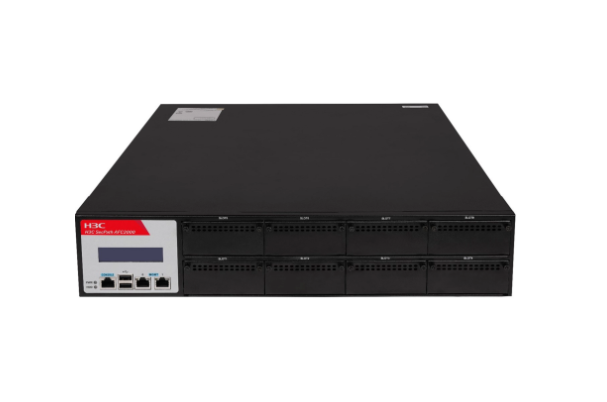

H3C SecPath AFC2000-E40-G

Model

AFC2000-E40-G

Chassis

Color

Black

Form Factor

Box type

Height

2U

External Dimensions

(Length D * Width W * Height H)

600mm×440mm×89mm

Packaging Dimensions

(Length D * Width W * Height H)

730mm×535mm×225mm

Gross Weight

20 Kg

Net Weight

15.76 Kg

Storage

Standard Storage

Supports up to 3 SATA drives (HDD/SSD: two external, one internal).

Default: one 4TB drive - Seagate ST4000NM000B

Drive Interface

2

Standard Interfaces

Management Port (Copper Ports)

2

Console Port

1

USB

2

Expansion Slots

Number Of Interface Card Expansion Slots (Used/Total)

0/8

Service Card Slots

8

Power Supply

Power Supply Methods

Dual power supply (Great Wall)

Standard Power Supply

Input voltage: 100-240V AC / 180-310V DC
Frequency: 50Hz-60Hz
Supports one AC connection and one high-voltage DC connection

Power Consumption

350W

Voltage

AC 100-240V
DC 180-310V

Power Consumption

160W (max 300W, min 126W)

Fan

4 (1 CPU fan, 1 bridge fan, 2 chassis fans)

Environmental Stability Parameters

Operating Temperature

0 °C -40 °C (storage temperature: -20 °C -70 °C)

Operating Humidity

Operating: 20–80%, non-condensing
Non-operating: 5–95%, non-condensing

MTBF

Over 70,000 hours

Expansion Modules

Expansion Card 1

4-port Ethernet Giga copper and 4-port Ethernet optical card (4 copper/4 optical)

Expansion Card 2

4-port Ethernet Giga copper (includes 2 pairs bypass) and 4-port Ethernet optical card (4 copper/4 optical/2BP)

Expansion Card 3

4-port Ethernet 10G optical card (4x10G)

Expansion Card 4

4-port Ethernet 10G optical card (includes 2 pairs bypass, multimode) (4x10G/2BP)

Expansion Card 5

2-port 40G Ethernet optical card

Expansion Card 6

16-port Ethernet copper, 16-port Ethernet Giga optical and 4-port Ethernet 10G optical card (16 copper/16 optical/4x10G)
