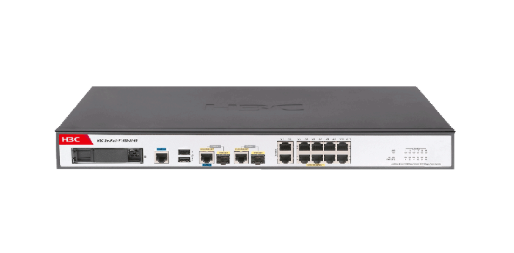

F1000-AI-05
|
Item |
F1000-AI-05 |
F1000-AI-15 |
F1000-AI-25/35/55 |
F1000-AI-60/70 |
F1000-AI-65/75 |
F1000-AI-80/90 |
|
Dimensions (W × D × H) |
440mm×230mm×44mm |
440mm×360mm× 44mm |
440mm×260mm×44mm |
440mm×435mm×44mm |
440mm×435mm×44mm |
440mm×435mm×44mm |
|
USB |
2 |
2 |
2 |
2 |
2 |
2 |
|
Rack mounted |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Weight |
3kg |
3.7kg |
5.4kg |
10.0kg |
5.6kg |
10.0kg |
|
Power supply |
AC |
2*AC |
Dual hot-swappable, AC or DC |
Dual hot-swappable, AC or DC |
Dual hot-swappable, AC or DC |
Dual hot-swappable, AC or DC |
|
Power consumption |
32W |
48W |
46W |
180W |
90W |
180W |
|
MTBF(Year) |
77.36 |
77.36 |
53.38 |
45.39 |
50.31 |
43.2 |
|
Ports |
1×Console Port 8×GE RJ45 Ports 2×GE Combo Ports (1 MGMT) 2×GE RJ45 Bypass Ports |
1×Console Port 2×GE RJ45 MGMT Ports 18×GE RJ45 Ports 8×GE Combo Ports 4×GE RJ45 Bypass Ports 2×1/10GE SFP+ Ports |
1×Console Port 1×GE RJ45 MGMT Ports 16×GE RJ45 Ports 6×GE SFP Ports 4×GE Combo Ports 2×1/10GE SFP+ Ports |
1×Console Port 2×GE RJ45 MGMT Ports 14×GE RJ45 Ports 12×GE SFP Ports 4×1/10GE SFP+ Ports |
1×Console Port 1×GE RJ45 MGMT Ports 16×GE RJ45 Ports 4×GE SFP Ports 4×GE Combo Ports 6×1/10GE SFP+ Ports |
1×Console Port 2×GE RJ45 MGMT Ports 14×GE RJ45 Ports 8×GE SFP Ports 8×1/10GE SFP+ Ports |
|
Expansion slots |
0 |
0 |
2 |
2/4 |
2 |
4 |
|
Interface modules |
N/A |
N/A |
4×GE PFC Interface Module 4×GE SFP Interface Module |
4×GE PFC Interface Module 4×GE SFP Interface Module 6×1/10GE SFP+ Interface Module |
4×GE PFC Interface Module 4×GE SFP Interface Module 6×1/10GE SFP+ Interface Module |
4×GE PFC Interface Module 4×GE SFP Interface Module 6×1/10GE SFP+ Interface Module |
|
Storage |
480G SSD |
480G M.2 (Raid0/Raid1) |
480G SSD |
480G/1.92T SSD (Raid0/Raid1) |
480G/1.92T SSD (Raid0/Raid1) |
480G/1.92T SSD (Raid0/Raid1) |
|
Flash |
4GB |
4GB |
4GB |
4GB |
4GB |
8GB |
|
SDRAM |
4GB |
4GB |
4GB/4GB/8GB |
8GB |
8GB |
16GB |
|
Temperature |
Operating: 0°C to 45°C (32°F to 113°F) Storage: –40°C to +70°C (–40°F to +158°F) |
|||||
|
Environmental protection |
EU RoHS Compliance |
|||||
|
EMC |
FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB 9254 GB 17625.1 YD/T 993 |
|||||
|
Safety |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
|||||
