Weight
|
259g
|
|
Dimensions (W × D × H)
|
86 mm × 86 mm × 40 mm (without mounting brackets)
|
|
Interface
|

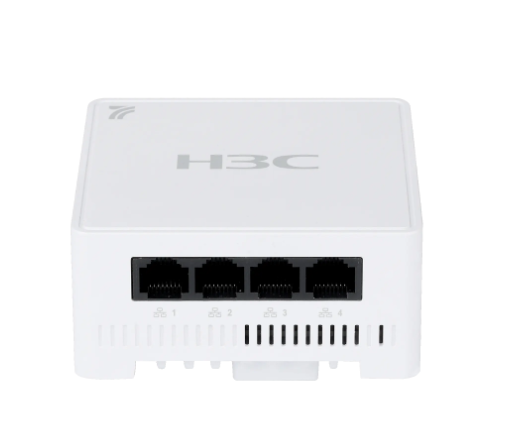

Front panel
4 x 10/100/1000M Ethernet, downlink/LAN port, RJ-45
Back panel (uplink port) [1]
1 x 100/1000M/2.5G Ethernet, uplink/LAN/WAN port, RJ-45, PoE input
|
|
Console port
|
1 x Management Micro-USB port
|
|
USB port
|
1 x USB 2.0 at 2.5W
|
|
PoE input
|
1 x 100/1000M/2.5G Ethernet, 802.3at/af
|
|
Local power supply
|
POE injector (sold separately)
|
|
Antenna type
|
Built-in omni-directional antenna
|
|
Antenna gain
|
6GHz peak gain: 5.2dBi
5GHz peak gain: 5.0dBi
2.4GHz peak gain: 4.0dBi
Note: The equivalent antenna gain is 3.1dBi in 6GHz, 3.3dBi in 5GHz and 2.4dBi in 2.4GHz
|
|
Frequencybands
|
2.400 to 2.4835GHz ISM
5.150 to 5.250GHz U-NII-1
5.250 to 5.350GHz U-NII-2A
5.470 to 5.725GHz U-NII-2C
5.725 to 5.850GHz U-NII-3/ISM
5.850 to 5.895 GHz U-NII-4
5.925 to 6.425GHz U-NII-5
6.425 to 6.525GHz U-NII-6
6.525 to 6.875GHz U-NII-7
6.875 to 7.125GHz U-NII-8
Note: The available bands and channels are dependent on the configured regulatory domain (country)
|
|
Modulation technology
|
802.11b: Direct-sequence spread spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
802.11ax/be: Orthogonal frequency-division multiple access (OFDMA)
|
|
Modulation mode
|
11b: BPSK, QPSK, CCK
11a/g/n: BPSK, QPSK, 16QAM, 64QAM
11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
|
|
Data rates (Mbps)
|
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40)
802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160)
802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160)
802.11be: 7.3 to 23,059 (MCS0 to MCS13, NSS = 1 to 8, EHT20 to EHT320)
|
|
Maximum transmit power
|
6G: 23dBm
5G: 23dBm
2.4G: 23dBm
Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations
Note: To comply with spectrum regulatory requirements across different regions, the 6GHz RF (Radio Frequency) function of the device will be in a disabled state in countries/regions where the use of the 6GHz band is prohibited. Once the policy for 6GHz band usage in such countries/regions is implemented, this function can be officially activated in conjunction with future software update processes, ensuring the device operation complies with local regulations
|
|
Adjustable power granularity
|
Configurable in increments of 1dBm
|
|
Reset button
|
Restoration to factory default, AP mode control(CloudAP/FitAP)
|
|
Kensington
|
Phillips screw
|
|
Installation
|
Wall mounting, the mounting bracket has been preinstalled on the back of the AP
|
|
Indicators (LED)
|
Yellow/green/blue status LEDs for different working states indicate boot loader status, association status, operating status, and fault states of the system
|
|
Temperature
|
Operating temperature: 0°C to +40°C
Storage temperature: –40°C to +70°C
|
|
Humidity
|
Operating humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
|
|
Protection class
|
IP31
|
|
Surge protection
|
Common Mode：4KV
|
|
Overall power consumption
|
Power Source
|
6GHz/5GHz
Radio
|
2.4GHz
Radio
|
Link speed
|
USB
|
Max PoE
power
consumption
|
|
802.3at
|
2*2
|
2*2
|
2.5Gbps
|
Y
|
15W
|
|
802.3af
|
2*2
|
2*2
|
2.5Gbps
|
N
|
12.5W
|
|
Note: Actual power consumption may vary depending on access point usage.
|
|
Safety standards
|
IEC/EN 62368-1
GB 4943.1
|
|
EMC standards
|
EN 301 489-1
EN 301 489-3
EN 301 489-17
EN 60601-1-2
EN 55032
EN 55035
|
|
CISPR 32
CISPR 35
AS/NZS CISPR32
ICES-003 Issue 7
GB/T 9254.1
GB/T 9254.2
GB 17625.1
GB 17625.2
|
|
IEC/EN 61000-4-2
IEC/EN 61000-4-3
IEC/EN 61000-4-4
IEC/EN 61000-4-5
IEC/EN 61000-4-6
IEC/EN 61000-4-8
IEC/EN 61000-4-11
IEC/EN 61000-3-2
IEC/EN 61000-3-3
|
|
Radio standards
|
ETSI EN 300 328
ETSI EN 301 893, FCC Part 15E, ETSI EN 300 440
ETSI EN 303 687
|
|
RoHS standards
|
EN IEC 63000:2018
|
|
Health standards
|
EN 50385:2017
EN IEC 62311:2020
|
|
MTBF (25°C)
|
3810889 hours
|
