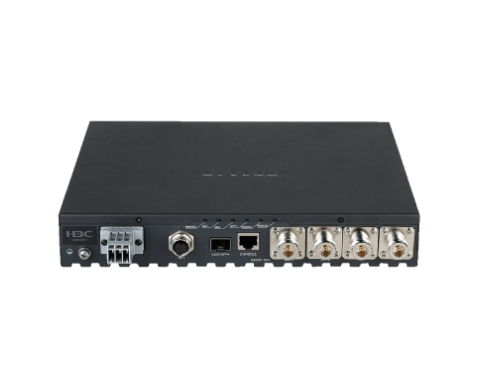

2701A02H

Weight

2.4kg

Dimensions (W × D × H)

260 mm × 210 mm × 40 mm (without mounting brackets)

Interface

2 x 100/1000M Ethernet, A-coding M12

1 x /1000M/10G optical port, SFP+

Console port

1 x Management console port (RJ-45)

Local power supply

100V to 264V AC (Alternating Current)

Antenna type

External antenna

Antenna gain

The Antenna Gains are dependent on External antenna

Frequency bands

2.400 to 2.4835GHz ISM

5.150 to 5.250GHz U-NII-1

5.250 to 5.350GHz U-NII-2A

5.470 to 5.725GHz U-NII-2C

5.725 to 5.850GHz U-NII-3/ISM

Note: The available bands and channels are dependent on the configured regulatory domain (country)

Modulation technology

802.11b: Direct-sequence spread spectrum (DSSS)

802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

802.11ax: Orthogonal frequency-division multiple access (OFDMA)

Modulation mode

11b: BPSK, QPSK, CCK

11a/g/n: BPSK, QPSK, 16QAM, 64QAM

11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Data rates (Mbps)

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40)

802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160)

802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160)

Maximum transmit power

5GHz: 33 dBm

2.4GHz: 30 dBm

Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations

Adjustable power granularity

Configurable in increments of 1dBm

Installation

Wall mounting/ceiling mounting, the mounting bracket has been preinstalled on the back of the AP

Indicators (LED)

Yellow/green/blue status LEDs for different working states indicate boot loader status, association status, operating status, and fault states of the system

Temperature

Operating temperature: -30°C to +55°C

Storage temperature: –40°C to +70°C

Humidity

Operating humidity: 0% to 100% (non-condensing)

Storage humidity: 0% to 100% (non-condensing)

Protection class

IP31

Surge protection

Common Mode：4KV

Overall power consumption

40W

Safety standards

IEC/EN 62368-1

GB 4943.1

SRRC

EMC standards

EN 301 489-1

EN 301 489-3

EN 301 489-17

EN 60601-1-2

EN 55032

EN 55035

CISPR 32

CISPR 35

AS/NZS CISPR32

ICES-003 Issue 7

GB/T 9254.1

GB/T 9254.2

GB 17625.1

GB 17625.2

IEC/EN 61000-4-2

IEC/EN 61000-4-3

IEC/EN 61000-4-4

IEC/EN 61000-4-5

IEC/EN 61000-4-6

IEC/EN 61000-4-8

IEC/EN 61000-4-11

IEC/EN 61000-3-2

IEC/EN 61000-3-3

Radio standards

ETSI EN 300 328

ETSI EN 301 893

ETSI EN 300 440

FCC Part 15E

RoHS standards

DIRECTIVE 2011/65/EU

(EU) 2015/863

Health standards

EN 50385:2017

EN IEC 62311:2020

MTBF (25°C)

861984 hours
