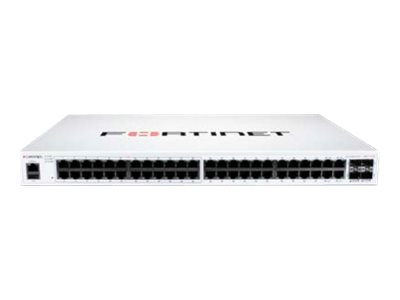

FS-148F-POE
FortiSwitch-148F-POE FortiSwitch-148F-POE is a performance/price competitive L2+ management switch with 48x GE port + 4x SFP+ port + 1x RJ45 console. Port 1- 24 are POE ports with automatic Max 370W POE output limit (24 port 802.3af or 12 port 802.3at)
Description
| Product Description | Fortinet FortiSwitch 148F-POE - switch - 48 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Side to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 176 Gbps Packets per second: 260 Mbps Latency: < 1 µs |
| Capacity | VLANs supported: 4000 Link aggregation groups: 8 Total link aggregation groups: 128 Buffer capacity (MB): 2 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | IGMP, policy-based routing (PBR), MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, RSTP, RADIUS |
| Features | Flow control, firewall protection, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, SNTP support, DHCP snooping, STP Root Guard, LACP support, LLDP support, 802.1x authentication, Storm Control, Link Aggregation, MIB II, AVC, LLDP-MED, VLAN Tagging, IP forwarding support, MAB, BPDU Guard, LAG |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX |
| Power | AC 120/230 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 44 cm x 31 cm x 4.4 cm |
| Weight | 4.68 kg |
