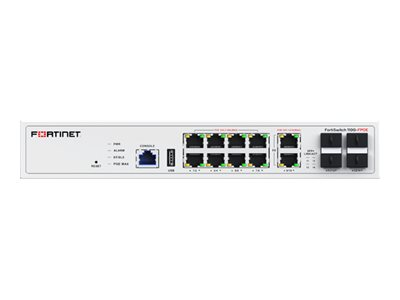

FS-110G-FPOE
Switch - Managed - 2 x 10/100/1000/2.5G/5G (PoE++) + 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ - side to back airflow - desktop - PoE++ (200 W)
Description
| Product Description | Fortinet FortiSwitch 110G-FPOE - switch - 10 ports - Managed |
|---|---|
| Device Type | Switch - 10 ports - Managed |
| Enclosure Type | Side to back airflow |
| Subtype | 5 Gigabit Ethernet |
| Ports | 2 x 10/100/1000/2.5G/5G (PoE++) + 8 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 200 W |
| Performance | Switching capacity: 140 Gbps Packets per second: 208 Mpps Latency: < 1 µs Packet buffer size: 2 MB |
| Capacity | VLANs supported: 4000 Link aggregation groups: 10 Total link aggregation groups: 12 ACL: 640 Spanning Tree Protocol instances: 32 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | IGMP, STP, MSTP, RSTP, BGP, static IP routing, IS-IS, RIP, RIP-2, OSPF, OSPFv2, OSPFv3, VRRP, VRRPv3, BGP-4 |
| Remote Management Protocol | DHCP, Syslog, HTTP, HTTPS, IPv4, IPv6, RMON 1, RMON 2, RMON 3, TFTP, Web GUI, CLI, UDP, TCP/IP, Telnet, SSH, MIB, SNMP 1, SNMP 2c |
| Features | Fanless, ZTP, cloud managed, NAC, SASE, FortiLink Mode, SD-WAN support, IGMP snooping, VXLAN, VLAN support, LLDP, LLDP-MED, High Availability, LAG, MAB, 802.1x authentication, DHCP snooping, ARP support, automatic topology detection, auto-negotiation, VLAN Tagging, EEE, LACP, CSMA/CD, flow control, Loop Guard, auto-uplink (auto MDI/MDI-X), Storm Control, Private VLAN, RPVST, STP BPDU Guard, STP Root Guard, TDR, port trunking, ACL support, DAI, NetFlow, IPFIX, IP source guard, IPv6 RA Guard, IP-MAC binding, port mirroring, sFlow, WOL, MC-LAG, QoS, ECN, ToS, DSCP support, SNMP traps, FTP support, SPAN, RSPAN, ERSPAN, reset button |
| Compliant Standards | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Qbb, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 1588-2008, IEEE 802.1p |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 22.8 cm x 27 cm x 4.4 cm |
| Weight | 1.84 kg |
