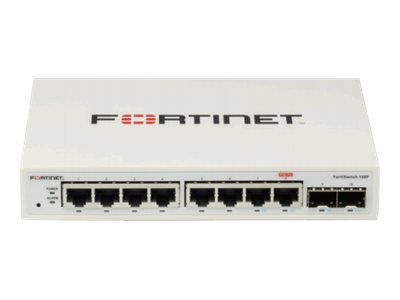

FS-108F
8 x GE RJ45 ports, 2 x GE SFP, Fanless, 12V/3A power adapter of input voltage 100 - 240VAC. Switch can also be powered over ethernet on Port 8 (PD port), FortiGate Switch controller compatible.
Description
| Product Description | Fortinet FortiSwitch 108F - switch - 8 ports - Managed |
|---|---|
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | Side to back airflow |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching capacity: 20 Gbps Packets per second: 30 Mpps Packet buffer size: 512 KB |
| Capacity | Latency: 4 µs VLANs supported: 4000 Link aggregation groups: 8 Total link aggregation groups: 8 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | Yes |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, QoS, DAI, STP Root Guard, fanless, LLDP support, DHCP relay, LACP, Energy Efficient Ethernet, 802.1x authentication, Storm Control, LLDP-MED, STP BPDU Guard, VLAN Tagging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 18 cm x 12 cm x 3 cm |
| Weight | 620 g |
