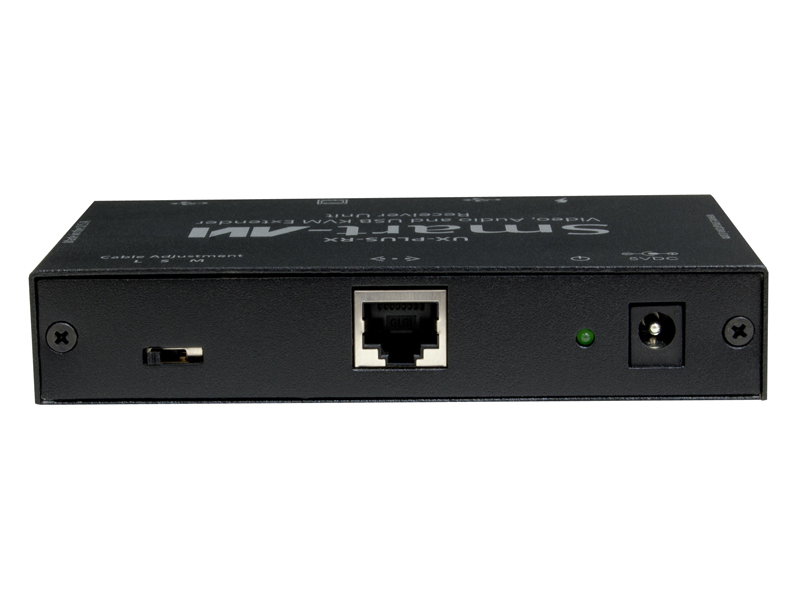

UX-PLUS
Extend and split VGA video plus USB 1.1 Keyboard-Mouse signals up to 500 feet over CAT5 cabling.
Description
VideoUSBOther
| Format | RGBHV, RGsB, YUV, Y/C, CVBS | |
| Resolution | Up to 1920 x 1200 VGA, SVGA, XGA, SXGA, UXGA, WUXGA | |
| Input Interface (TX) | (1) HD-15 Male / USB | |
| Output Interface (TX) | (1) HD-15 Female (for local display) | |
| Output Interface (RX) | (1) HD-15 Female | |
| Signaling | USB 1.1, and 1.0 | |
| Input Interface | (2) USB Type A (Female) (for local keyboard and mouse) | |
| Output Interface | (2) USB Type A (Female) | |
| PowerExternal | 100-240 VAC 5VDC2A @10W | |
| Dimensions | 5 in W x 1 in H x 3 in D | |
| Weight | 1 lbs. | |
| Approvals | UL, CE, ROHS Compliant | |
| Operating Temp. | 32-131°F (0-55 °C) | |
| Storage Temp. | -4-185 °F (-20-85 °C) | |
| Humidity | Up to 95% | |
