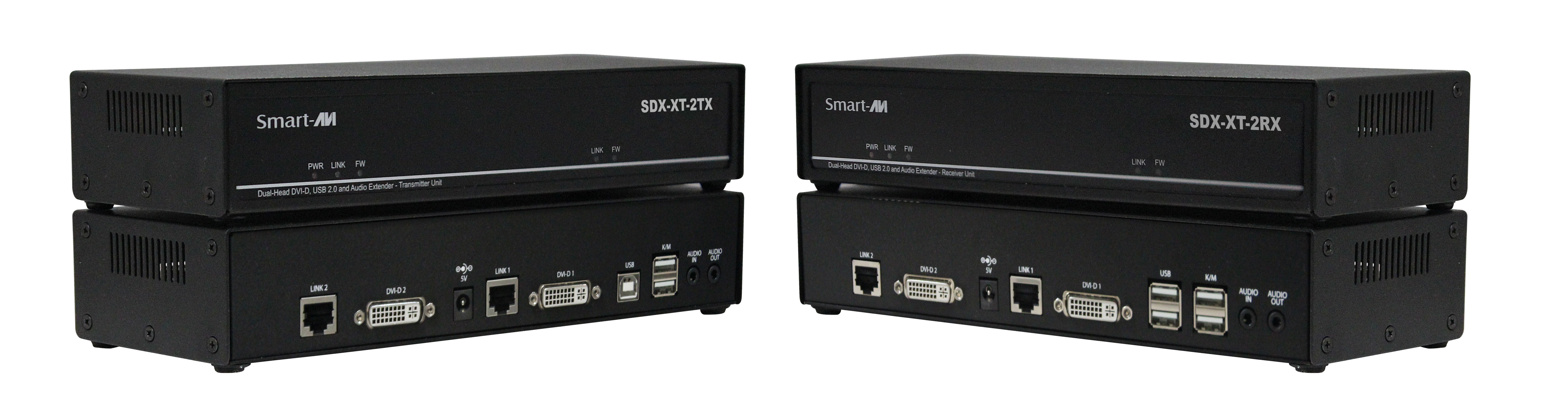

SDX-XT-2P
Extend digital video dual head DVI-D 1920×1200, USB 2.0, USB Keyboard/Mouse and Audio up to 500 ft over two CAT5/6 uncompressed.
Description
| VIDEO | |
|---|---|
| Format | DVI-D (HDMI-ready with adapter) |
| Video Resolution | Resolution: high definition 1920 x 1200 Color Depth: 24-bit color depth Latency: less than 1 ms |
| Video Bandwidth | Single-link 340 MHz (10.2 Gbps) |
| Input Interface (TX) | (2) DVI-I 29-pin |
| Output Interface (RX) | (2) DVI-I 29-pin |
| Max Output Distance | Up to 1920 x 1200 @ 60 Hz |
| Equalization | Automatic |
| Input TMDS Signal | 1.2 Volts [peak-to-peak] |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] |
| Data Rate | 1.65 Gbps per color |
| USB | |
| Input Interface (TX) | (1) USB Type B |
| Output Interface (RX) | (2) USB 1.1 Type A for KM Devices; (2) USB 2.0 Type A Transparent |
| Keyboard and mouse | Keyboard and mouse emulation |
| AUDIO | |
| Format | Stereo |
| Input Interface | Interface 3.5 mm Jack Socket (Female) |
| Output Interface | Interface 3.5 mm Jack Socket (Female) |
| SYSTEM | |
| Interface | RJ-45 Cable |
| Requirements | CAT5/5e/6 |
| Maximum Length | 500 ft |
| OTHER | |
| Power | 100-240 VAC/ 5VDC @ 3A/15W |
| Dimensions | 11.9” W x 1.7” H x 2.9” D |
| Weight | 1.75 lb (per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Environmental Operating Temperature | +32 to +104°F (0 to +40°C) |
| Environmental Operating Humidity | 20% to 80% (non condensing) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | EMC FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
