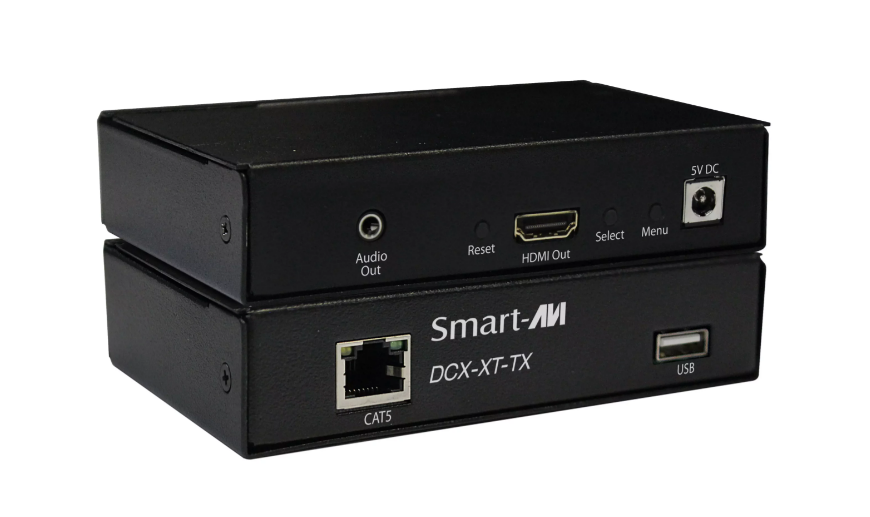

DCX-XT
HDMI, USB 2.0 and Audio KVM CAT5/6 Extender.
Description
| VIDEO | |
|---|---|
| Format | HDMI2.0 |
| Video Resolution | Up to 3840 x 2160 @ 30 Hz |
| Video Bandwidth | Single-link 340 MHz (10.2 Gbps) |
| Input Interface | (1) HDMI 19-pin (female) |
| Output Interface | (1) HDMI 19-pin (female) |
| Max Output Distance | Up to 20 f |
| Equalization | Automatic |
| Input TMDS Signal | 1.2 Volts [peak-to-peak] |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] |
| Data Rate | 1.65 Gbps per color |
| AUDIO | |
| Format | Stereo |
| Input Interface | (1) 3.5mm L/R jacket (female |
| Output Interface | (1) 3.5mm L/R jacket (female) |
| USB | |
| Input Interface (TX) | (1) USB Type A |
| Output Interface (RX) | (2) USB 1.1 Type A for KM Devices; (2) USB 2.0 Type A Transparent |
| Keyboard and mouse | Keyboard and mouse emulation |
| SYSTEM | |
| Cable Requirements | CAT5/5e/6 |
| Maximum Length | 100 m (330 ft) |
| OTHER | |
| Power | 100-240 VAC/ 5VDC @ 3A/15W |
| Dimensions | 7.8” W x 1.15” H x 3.65” D |
| Weight | 1 lb (.5 lbs per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Operating Humidity | 20% to 80% (non condensing) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
