XW1601

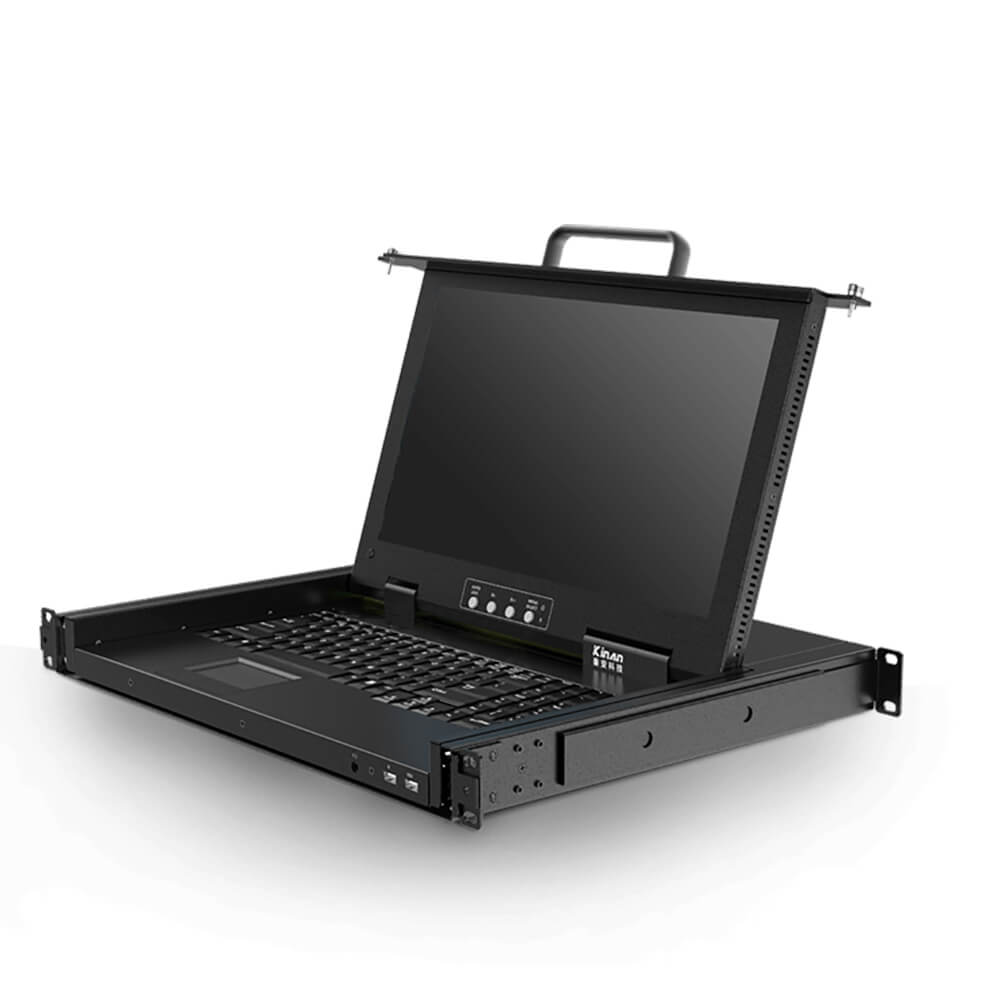

Ultra Short Depth Single Rail 15.6 Inch Widescreen LCD KVM Console
Description
| Model | XW1601 | |
| Computer connections | Direct | 1 |
| Max | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 15.6 " | |
| Optimum resolution | 1920 x 1080@60Hz | |
| Display color | 16.2M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 800 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.17925(H) × 0.17925(V) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Scroll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Input power | DC12V /2A | |
| Power consumption | 7W | |
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non-condensing | |
| Net weight | 8.5kg | |
| Product dimension (W ×D ×H) | 448mm×360 mm×42.5mm | |
| Package dimension (W× D× H) | 600mm×538mm×160mm | |
