XU0108

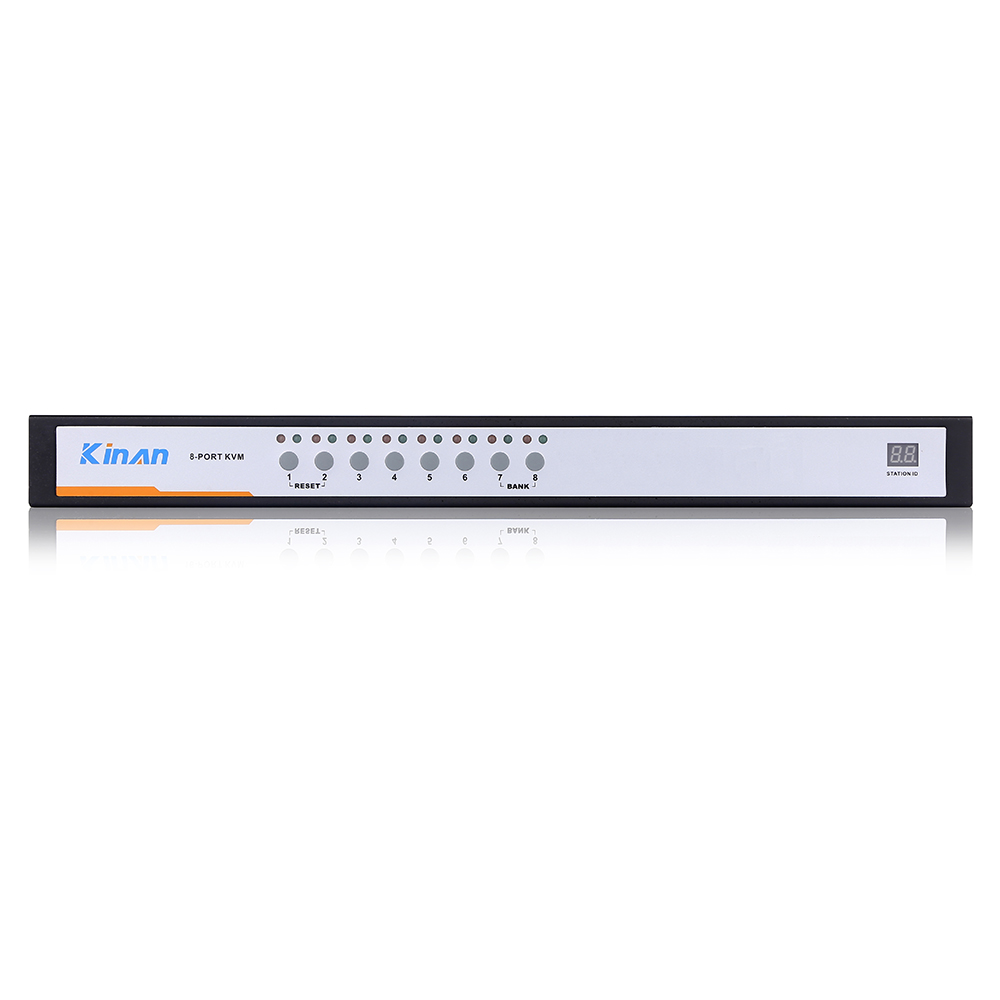

Rack Mount 8 port USB VGA KVM Switch
Description
| Model | XU0108 | ||
| Computer Connections | 8 | ||
| Port Selection | Select buttons, keyboard hot keys, OSD (On-Screen Display) | ||
| Connector | Console | monitor keyboard mouse |
1x HDB-15 Female(blue) 2x USB type A |
| KVM port (HDB-15 Female(yellow) |
8 (yellow) | ||
| Cascade port | 1x HDB-15 Female(yellow) | ||
| Switch | Port selection | 8 keys | |
| LED indicator | Online | 8 (green) | |
| Selected | 8 (orange) | ||
| Cascading display | 2*7- Segment (orange) | ||
| I/R value | DC 12V; 2A | ||
| Video signal | 2048×1536; DDC2B | ||
| Power consumption | 3.6W:19BTU | ||
| Emulation | keyboard/mouse | USB | |
| Environment requirements | Operating temperature | 0-50℃ | |
| Store temperature | -20-60℃ | ||
| Humidity | 0-80%RH, Non-condensing | ||
| Physical features | Material | metal | |
| Weight | 2.0kg | ||
| Dimension | 440 x 169 x 43mm | ||
