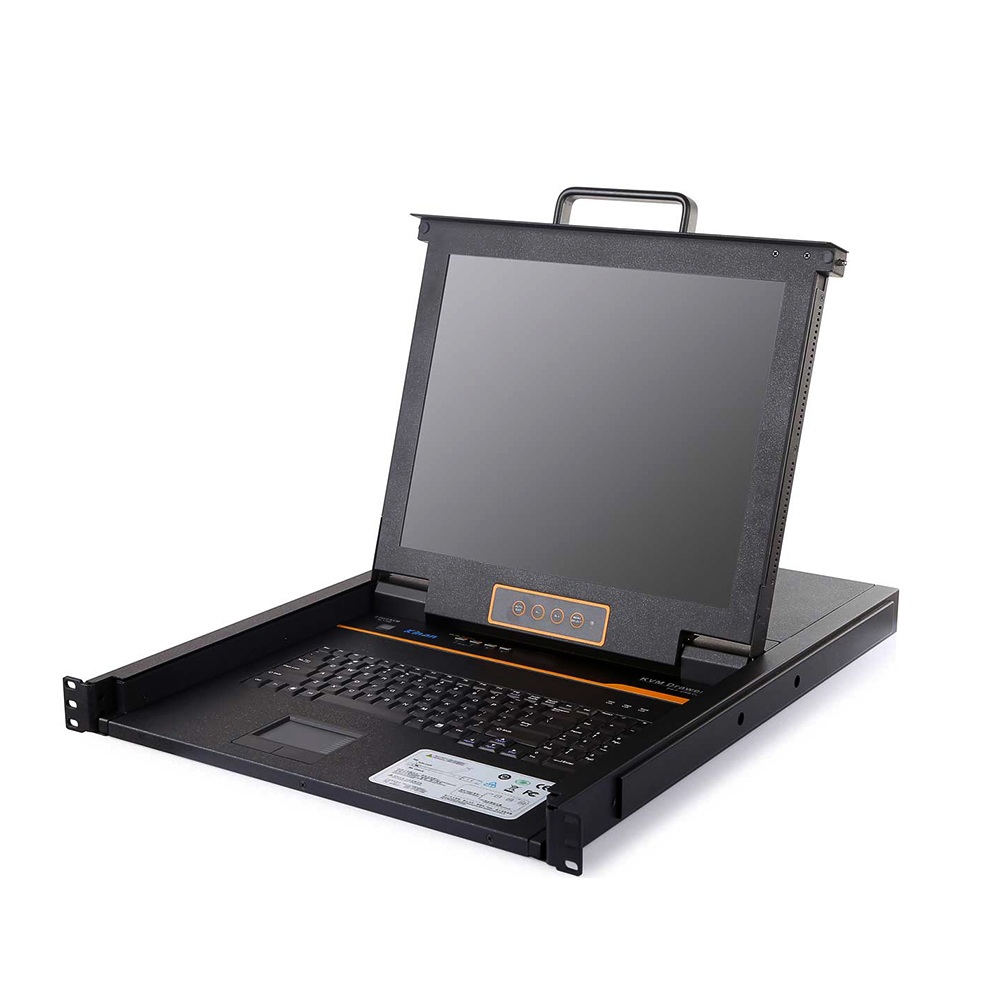

XL1704
17” 4 Port USB / PS2 VGA KVM Switch
Description
| Model No. | XL1704 | |
| Computer connections | Direct | 4 |
| Max | 4 | |
| Port emulation | Keyboard, mouse | PS/2，USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17 " | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Scroll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | Pushbuttons, hot keys | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 15W | |
| Mounting distance | 450- 790mm (L=420mm) | |
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non-condensing | |
| Net weight | 11.8kg | |
| Product dimension (W × D × H) | 448mm×481mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
