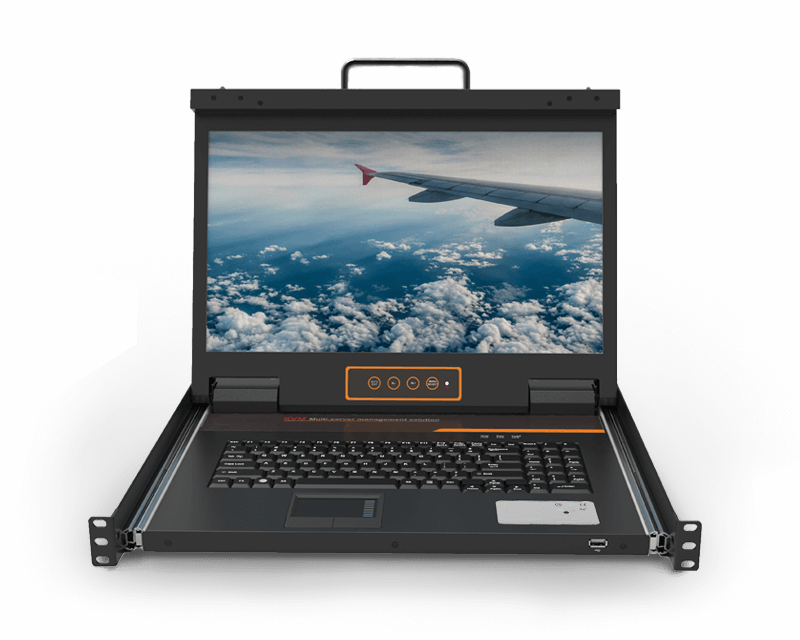

LM1801
Short Depth 18.5” Widescreen LCD Console (VGA / DVI / HDMI / DP)
Description
| Model | LM1801 | |
| Computer Connections | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD type | FHD TFT |
| View area | 18.5″ | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.213(H) × 0.213(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Video Signal Input Priority | VGA > DVI > HDMI > DP | |
| Input power | 100V – 240Vac, 50 ~ 60Hz, <1.5A | |
| Power consumption | 30W | |
| Operating temperature | 0 – 50 ℃ | |
| Store temperature | -20 – 60 ℃ | |
| Humidity | 0 – 80% RH, non-condensing | |
| Net weight | 11 kg | |
| Product dimension (W × D × H) | 448mm× 487mm × 42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
