LH2708

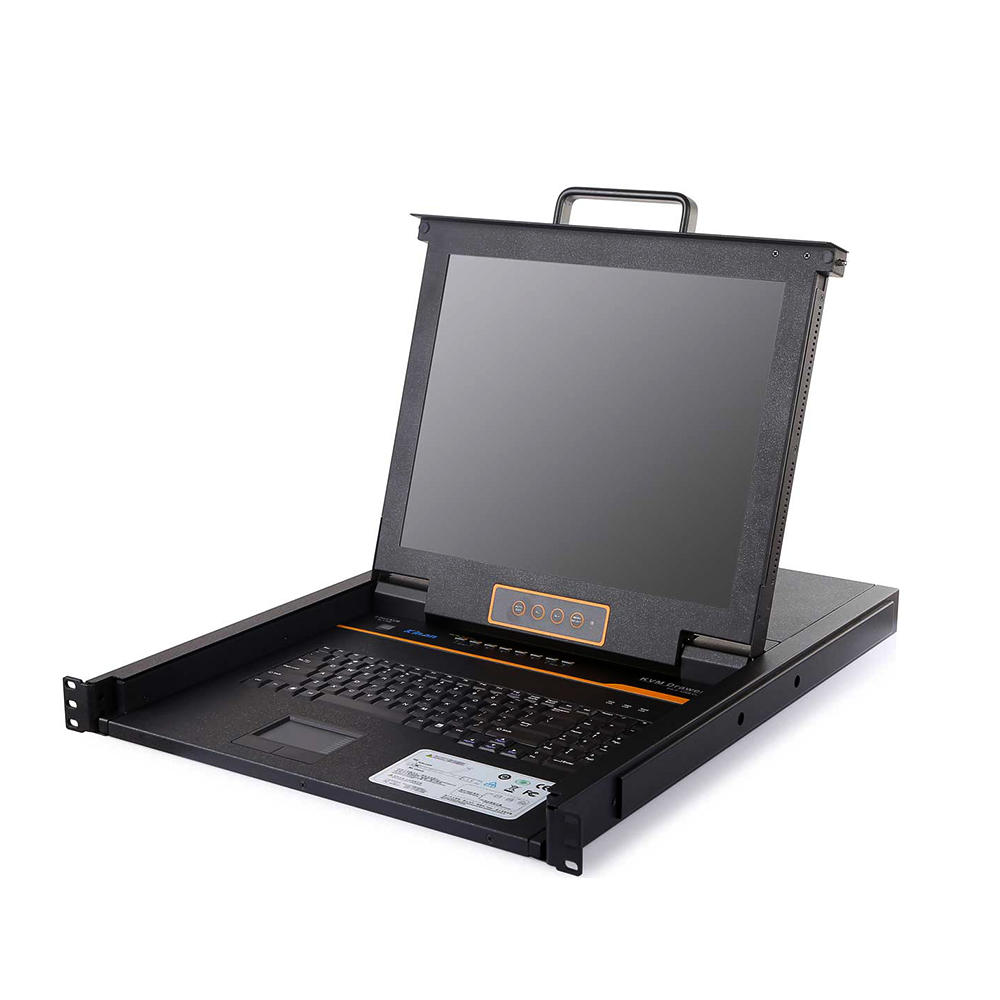

8 Port USB HDMI 17” LCD KVM Console
Description
| Model | LH2708 | |
| Computer connections | Direct | 8 |
| Max | 8 | |
| Port emulation | Keyboard, mouse | USB |
| LCD monitor | LCD model | SXGA TFT |
| View area | 17 " | |
| Optimum resolution | 1280×1024@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Roll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | Front panel pushbuttons, hotkeys, OSD menu | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 22W | |
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non condensing | |
| Net weight | 12.8 kg | |
| Product dimension (W × D × H) | 448mm×581mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
| Optional power input | -36V— -72V DC | |
