LH1816

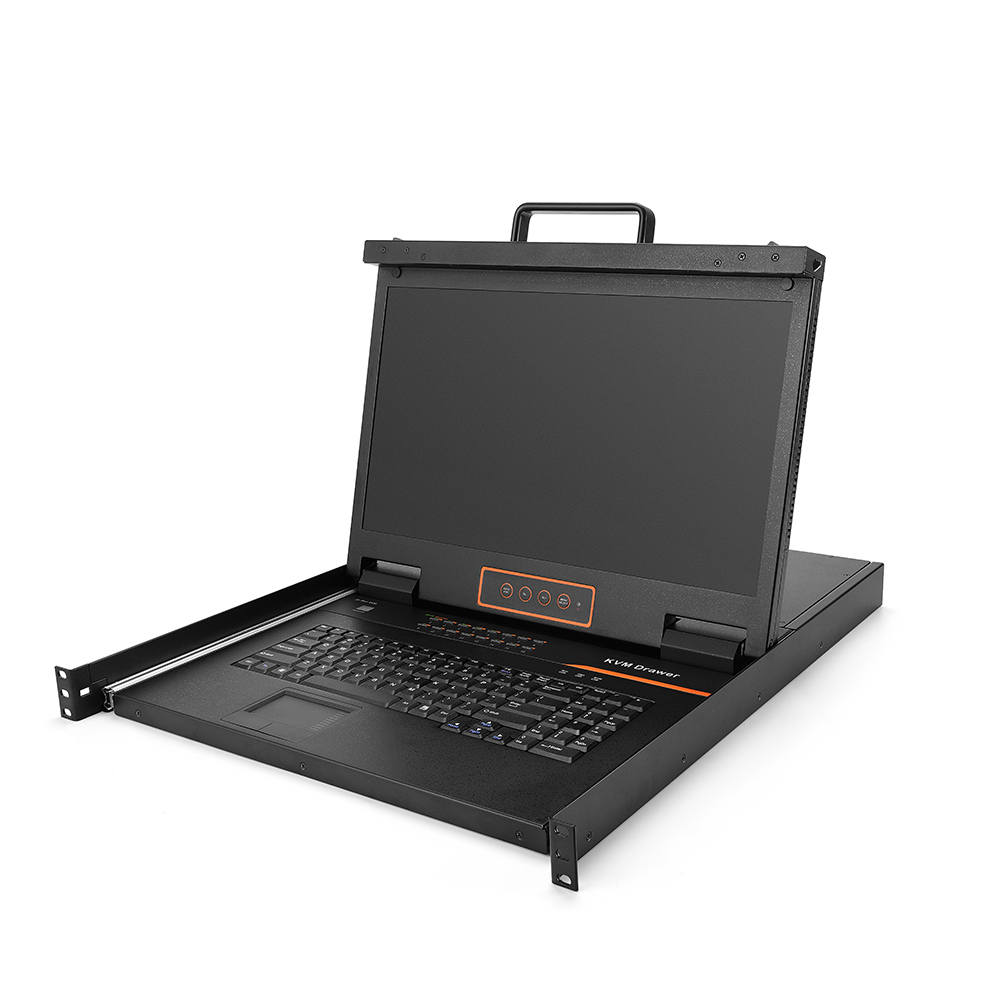

16 Port USB HDMI 18.5” widescreen LCD KVM Console
Description
| Model | LH1816 | |
| Computer connections | Direct | 16 |
| Max | 16 | |
| Port emulation | Keyboard, mouse | USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 18.47″ | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 16.7 M | |
| Brightness | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixel pitch(mm) | 0.213(H) × 0.213(W) | |
| Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Roll wheel | Supports scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Port selection | pushbuttons, hotkeys, OSD menu | |
| Input power | 100V- 240Vac, 50-60Hz, <1.5A | |
| Power consumption | 30W | |
| Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
|
| Operating temperature | 0—50 ℃ | |
| Store temperature | -20—60 ℃ | |
| Humidity | 0—80% RH, non-condensing | |
| Net weight | 12kg | |
| Product dimension (W × D × H) | 448mm×560mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
