LH1701

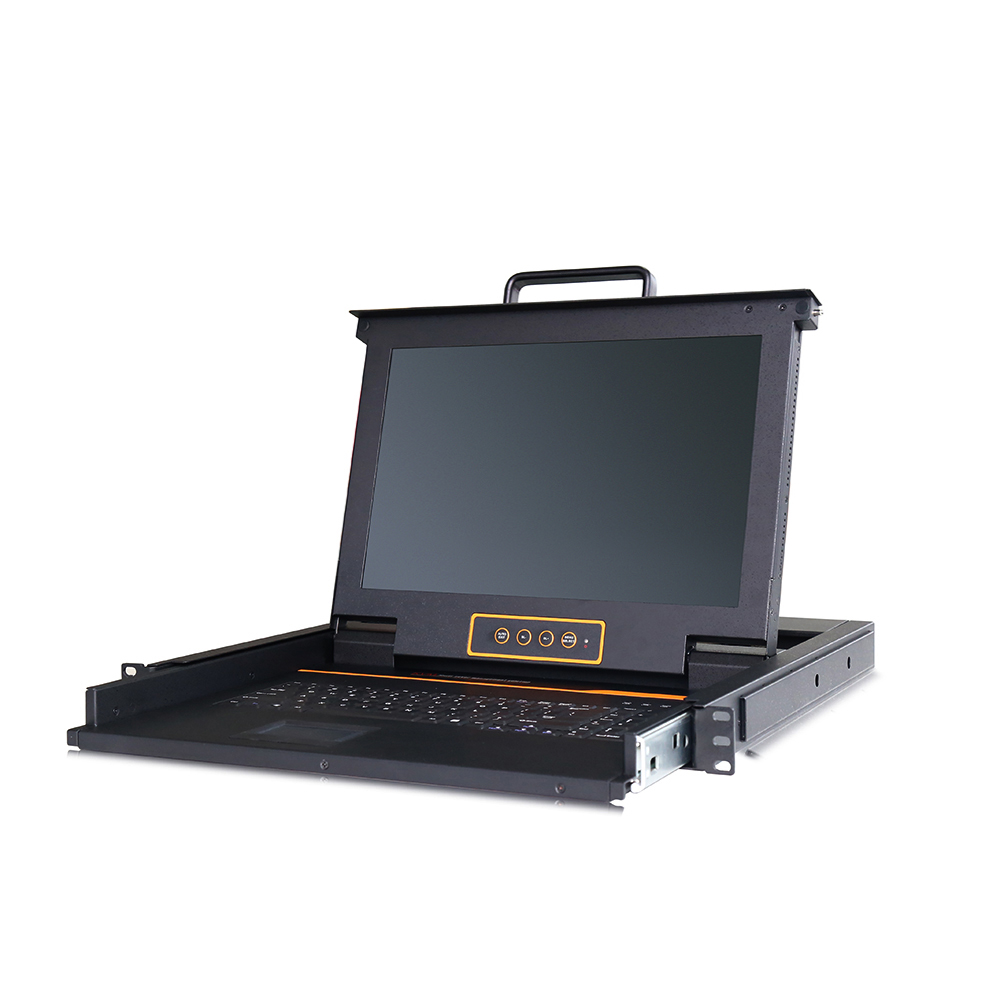

1U Rackmount 17.3” widescreen HDMI LCD KVM Console
Description
| Model | LH1701 | |
| Computer Connections | 1 | |
| Port emulation | Keyboard, mouse | PS/2, USB |
| LCD monitor | LCD model | FHD TFT |
| View area | 17.3" | |
| Optimum resolution | 1920×1080@60Hz | |
| Display color | 262K | |
| Brightness | 300cd/m² (T y p) | |
| Contrast ratio | 800: 1(T y p) | |
| Pixel pitch(mm) | 0.1989(H) × 0.1989(W) | |
| Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
| Scroll wheel | Support scroll wheel function | |
| Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
|
| Input power | 100V – 240Vac, 50 ~ 60Hz, <1.5A | |
| Power consumption | 12W | |
| Operating temperature | 0 – 50 ℃ | |
| Store temperature | -20 – 60 ℃ | |
| Humidity | 0 – 80% RH, non-condensing | |
| Net weight | 10.5 kg | |
| Product dimension (W × D × H) | 448mm×525.6mm×42.5mm | |
| Package dimension (W × D × H) | 765mm×615mm×185mm | |
